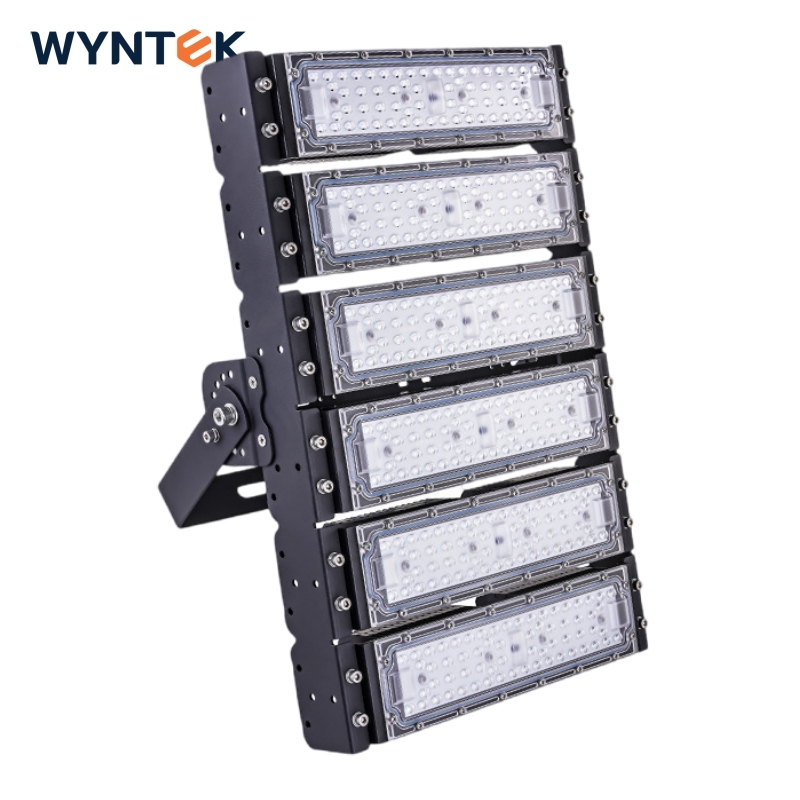

Modular LED flood light 50w-600w IP65 for tunnel sports field
Short Description:
Model No.: WT-PFL-A
Power: 50W / 100W / 150W / 200W / 250W / 300w / 400W / 500W / 600W
Input Voltage: AC85-265V / AC100-277V
Efficiency: 100-130lm/w
LED Chips: SMD3030, China brand/Bridgelux/Epistar/LumiLEDs
Material: Aluminum housing case + PC lens
Warranty: 3 / 5 Years
Applications: Tunnels, industrial parks, warehouses, sports fields, construction sites, and outdoor Lighting Projects.
Lead time: 7-15 days
OEM / ODM: Available
Get Quote WhatsAppLighting Features
- Modular design - flexible wattage combinations & easy maintenance
- High Efficiency up to 130lm/w
- Durable Aluminum housing case
- IP65 Waterproof protection
- Multiple Wattages up to 600W

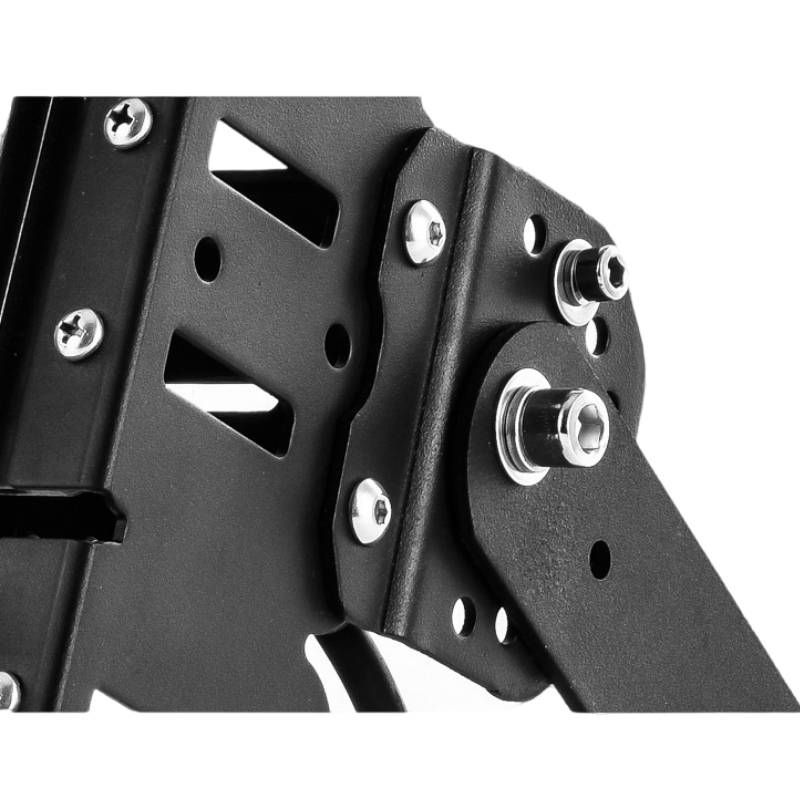

- Adjustable Mounting Bracket
- Lifespan > 50000 Hours
- 3-5 Years Warranty
Product Details
Technical Specifications
| Product Name | MODULAR LED FLOOD LIGHT | |||||
| Model No. | WT-PFL-A50 | WT-PFL-A100 | WT-PFL-A150 | WT-PFL-A200 | WT-PFL-A250 | WT-PFL-A300 |
| Wattage | 50W | 100W | 150W | 200W | 250W | 300W |
| Input Voltage | AC85-265V / AC100-277V, 50/60Hz | |||||
| Driver Brand | China Brand / Inventronics / Meanwell / Philips | |||||
| Efficiency | 100-130lm/W | |||||
| Chips Brand | China Brand / Lumileds / Bridgelux / Epistar | |||||
| Power Factor | ≥0.95 | |||||
| CRI | 70-80Ra | |||||
| CCT | 3000K / 4000K / 6000K | |||||
| Beam Angle | 90° | |||||
| Waterproof | IP65 | |||||
| Material | Aluminum Housing + PC Lens | |||||
| Lamp Size | 340×220×76mm | 340×220×156mm | 340×220×236mm | 340×220×316mm | 340×220×396mm | 340×220×472mm |
| Warranty | 3-5 Years | |||||

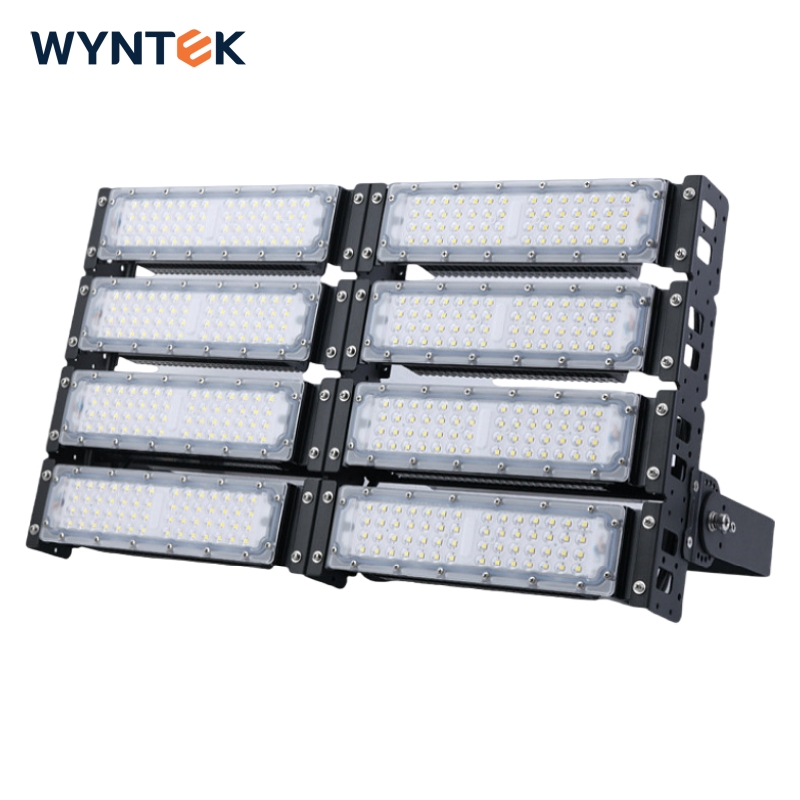

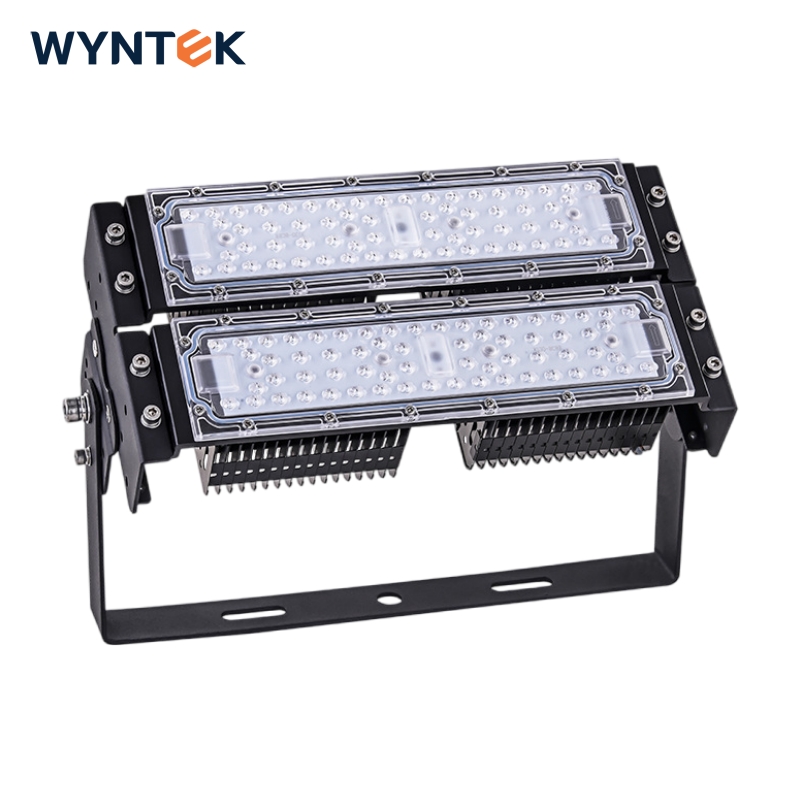

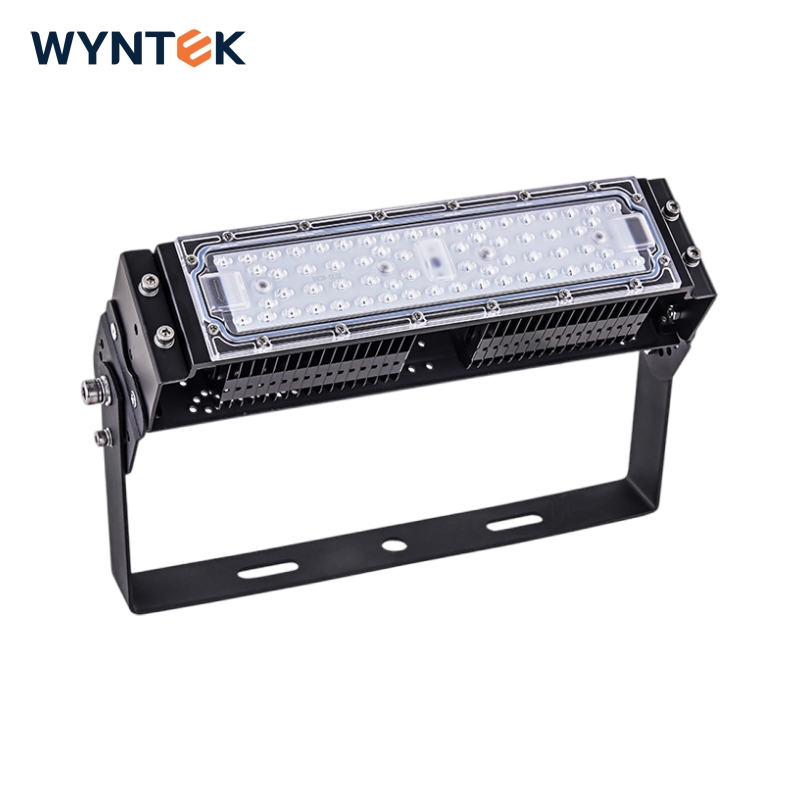

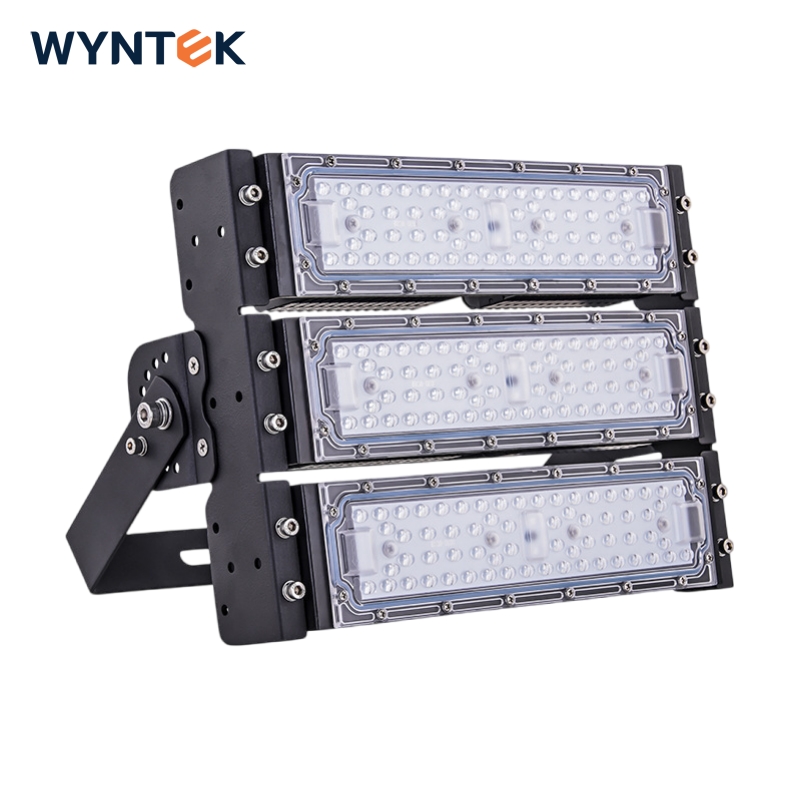

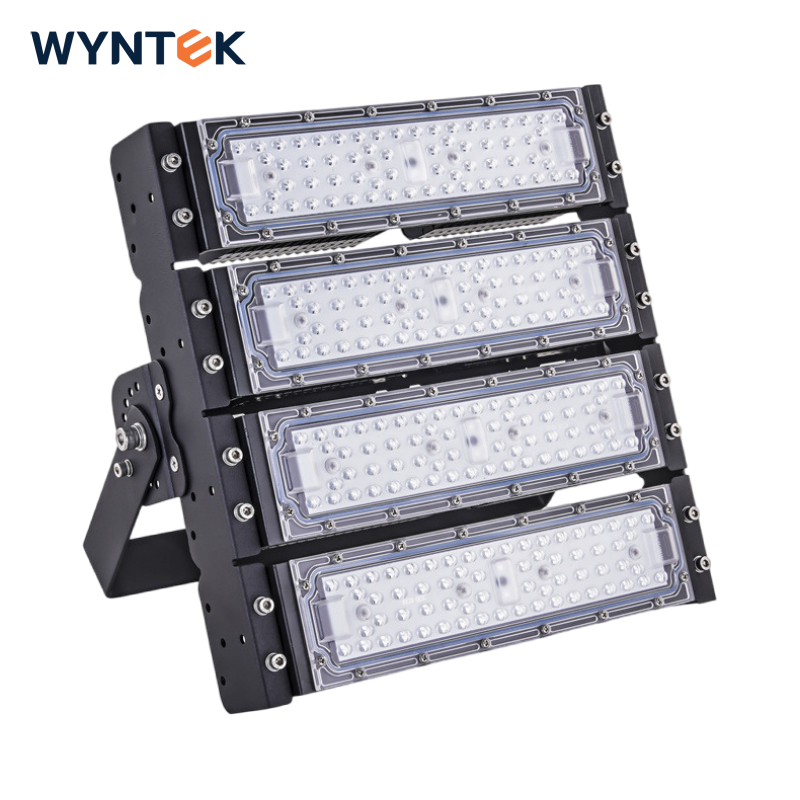

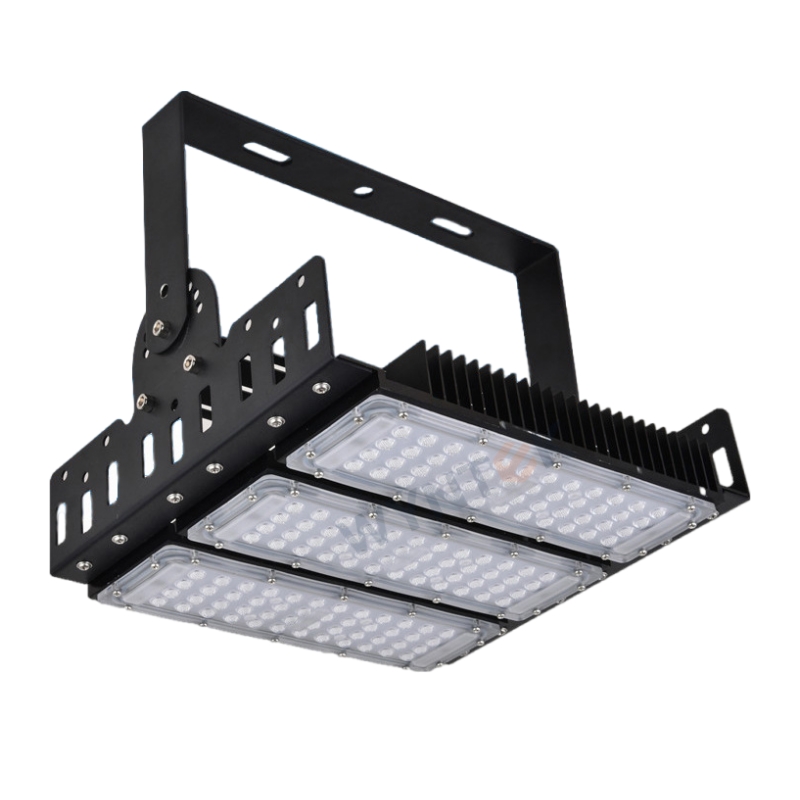

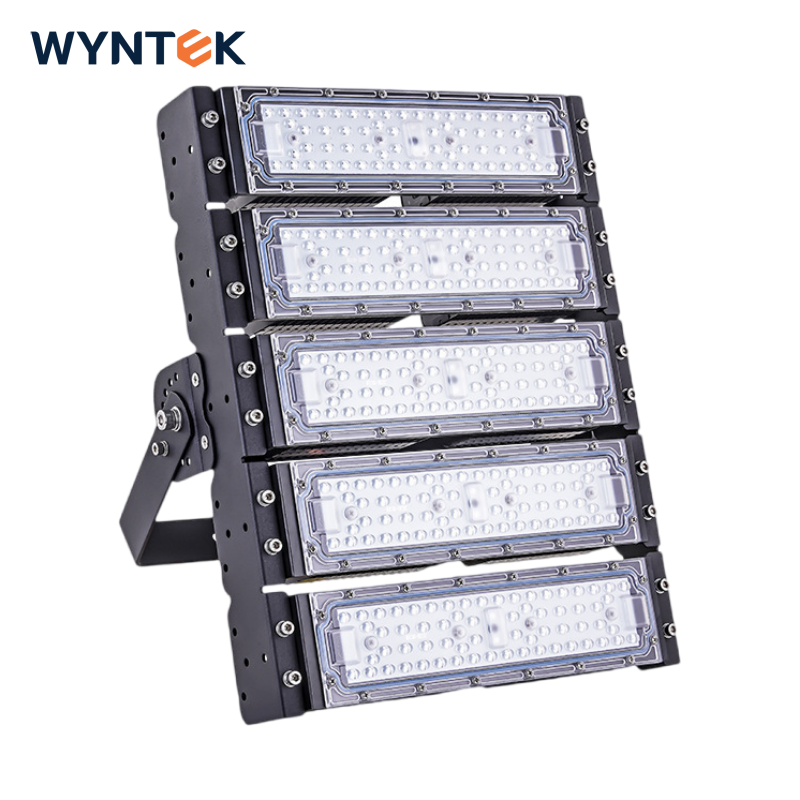

Actual Product Images

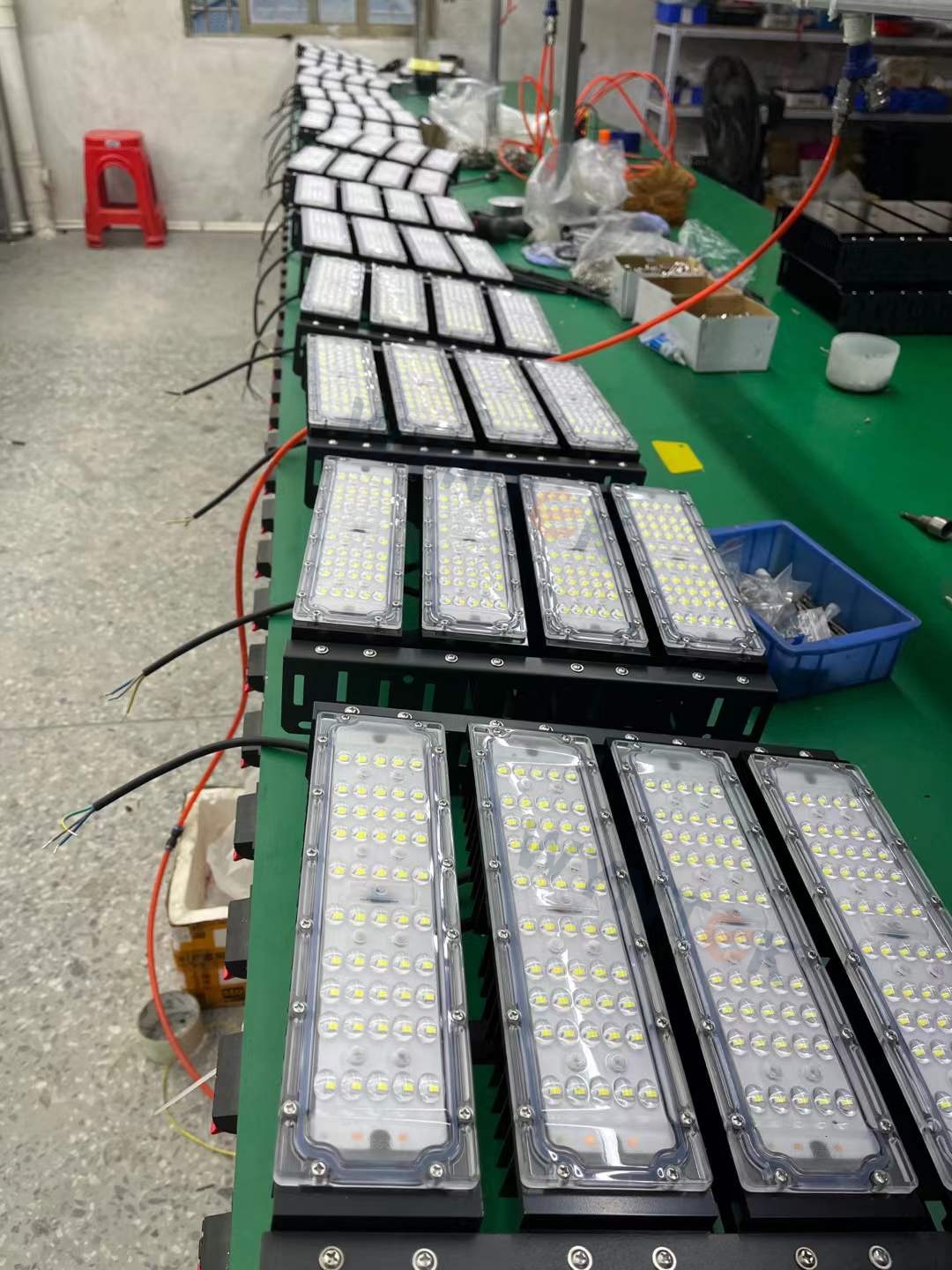

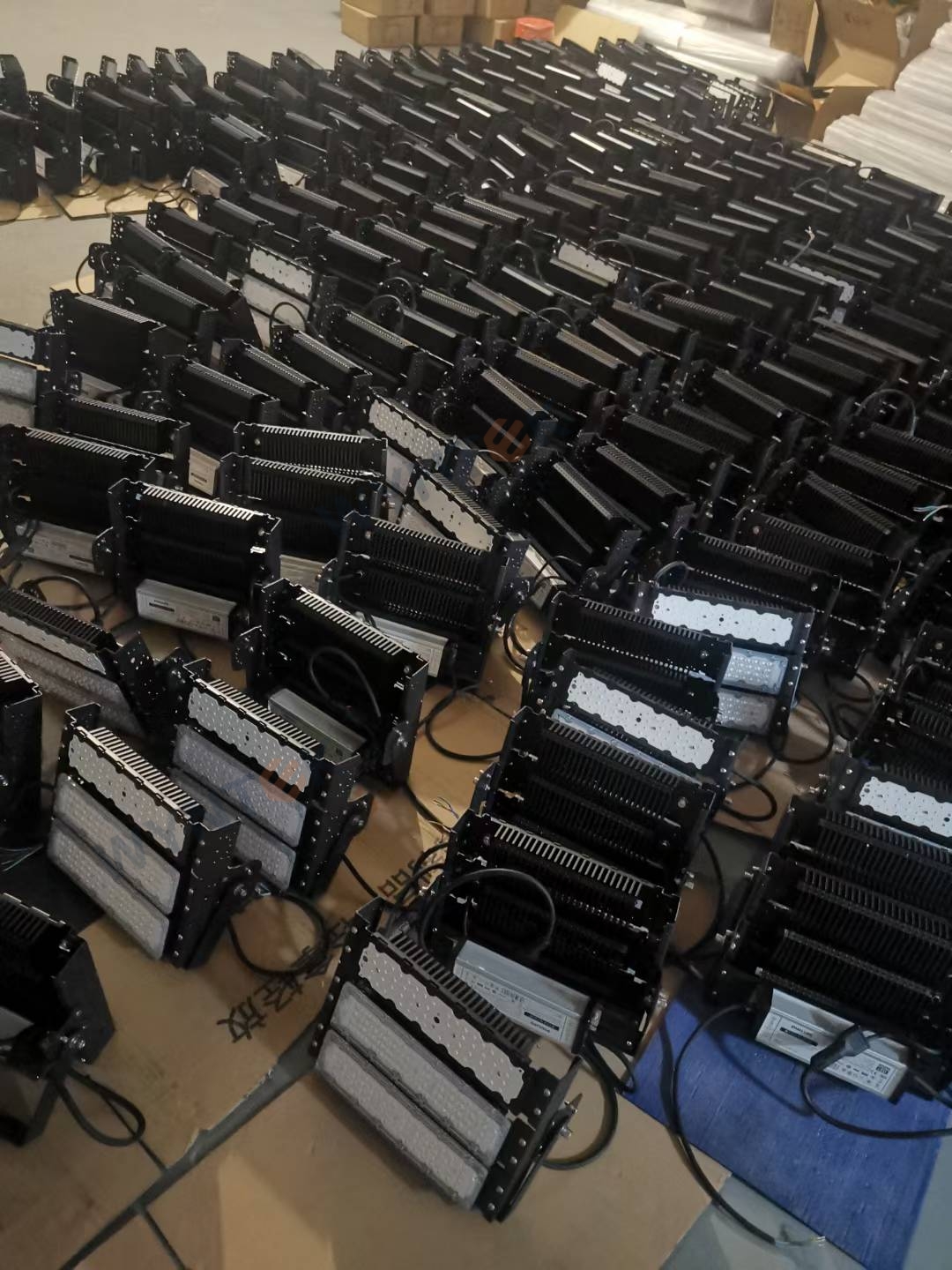

Production Photos
Applications

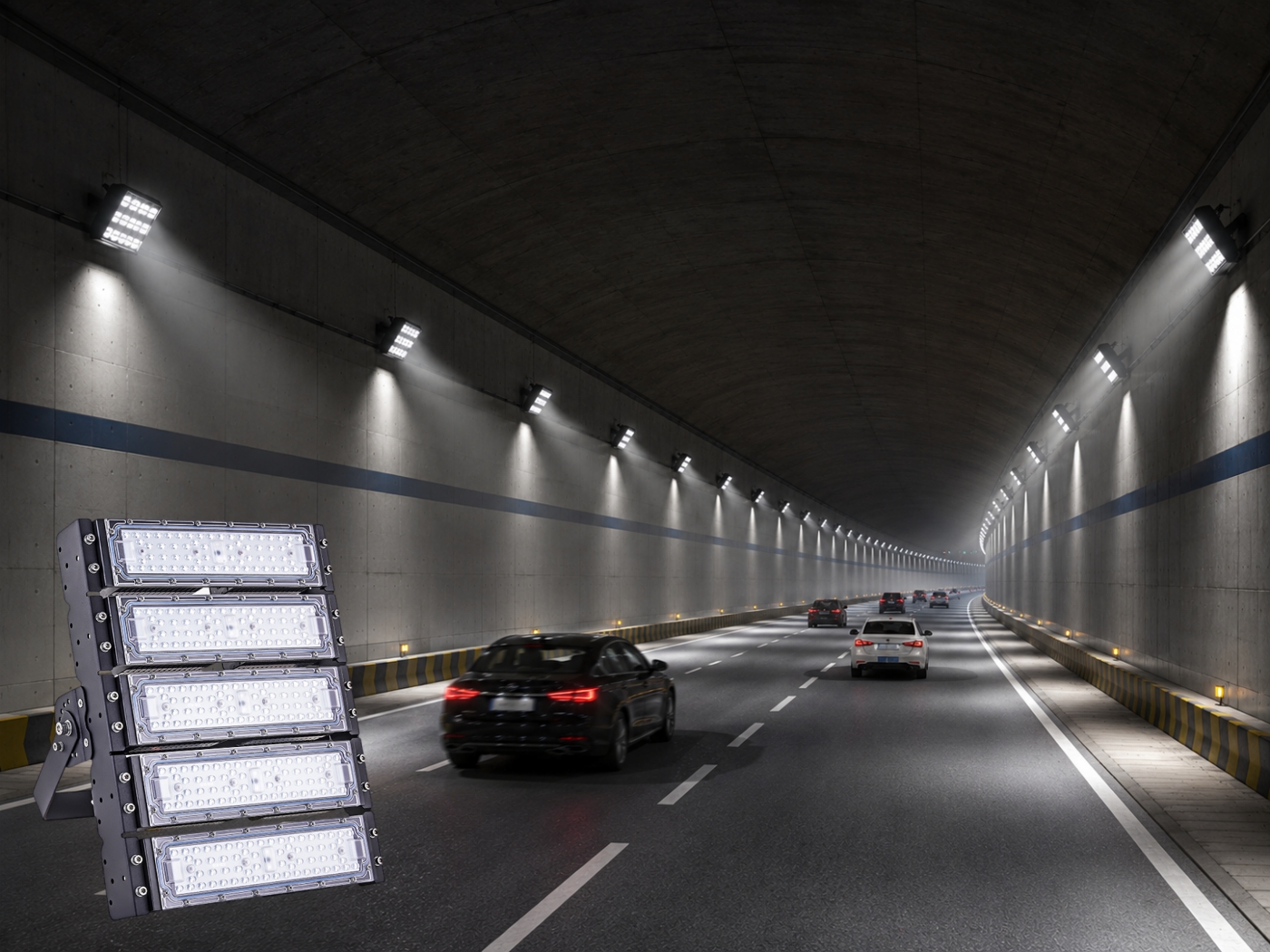

Tunnel

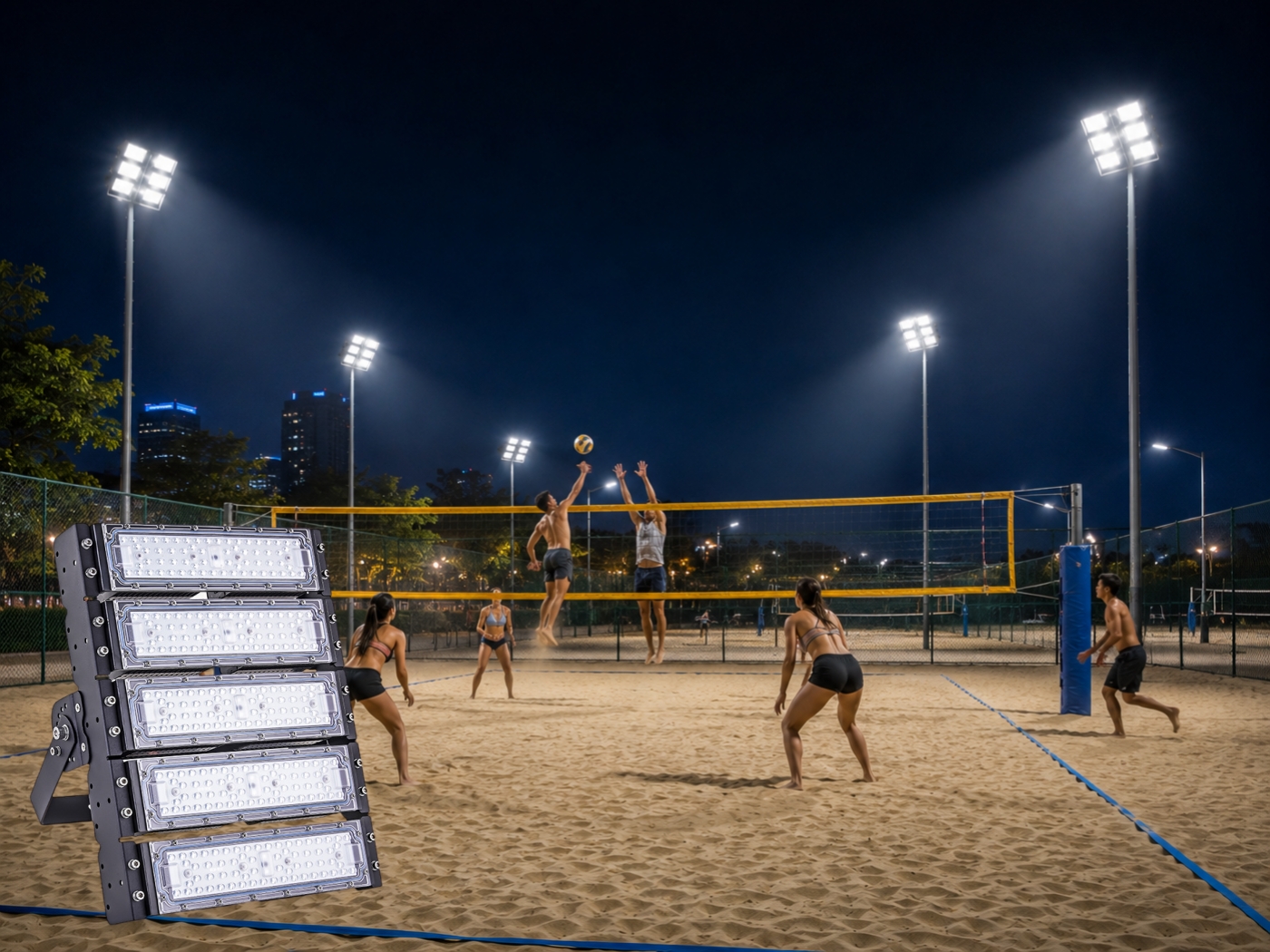

Volleyball court

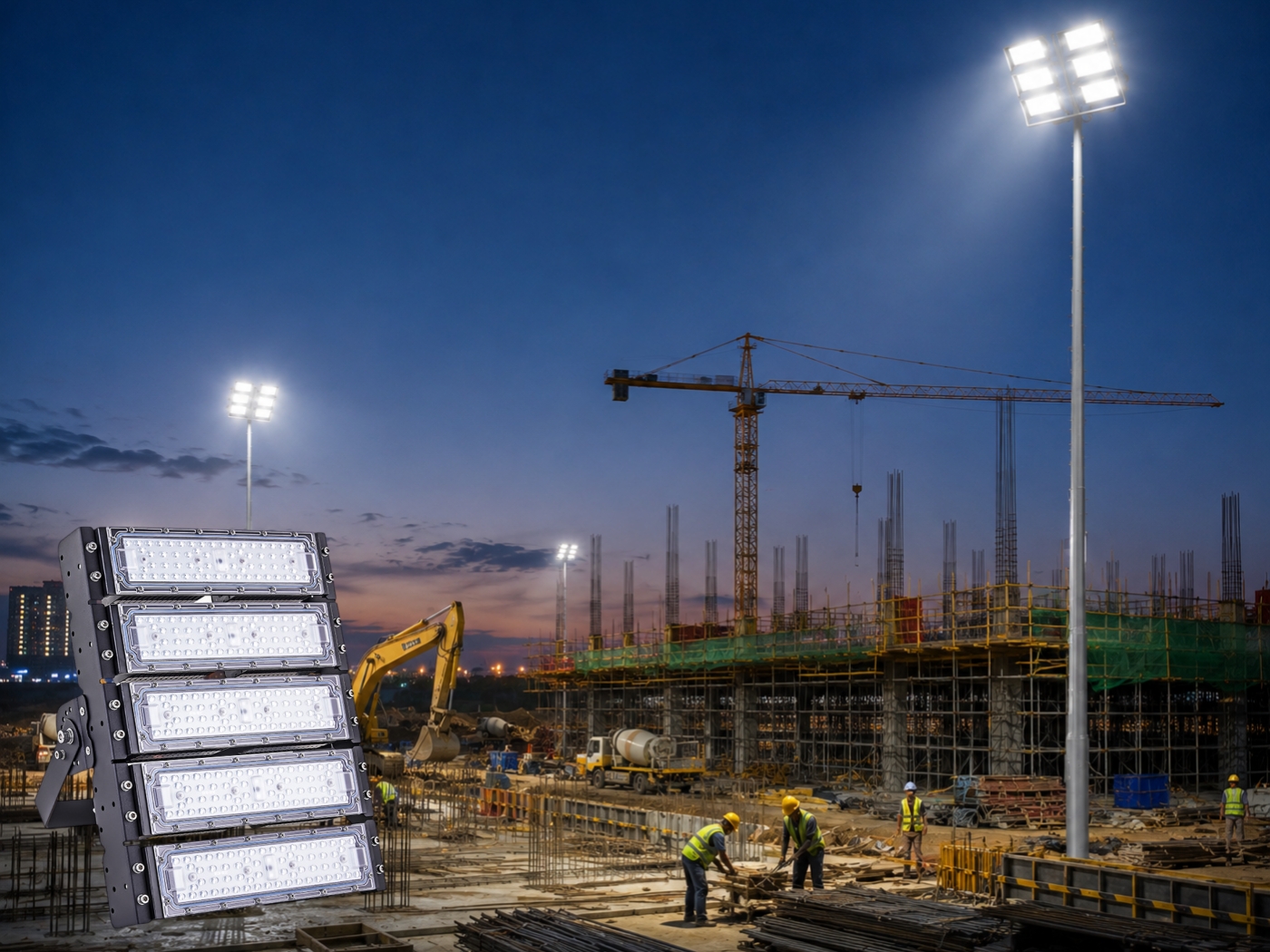

construction sites

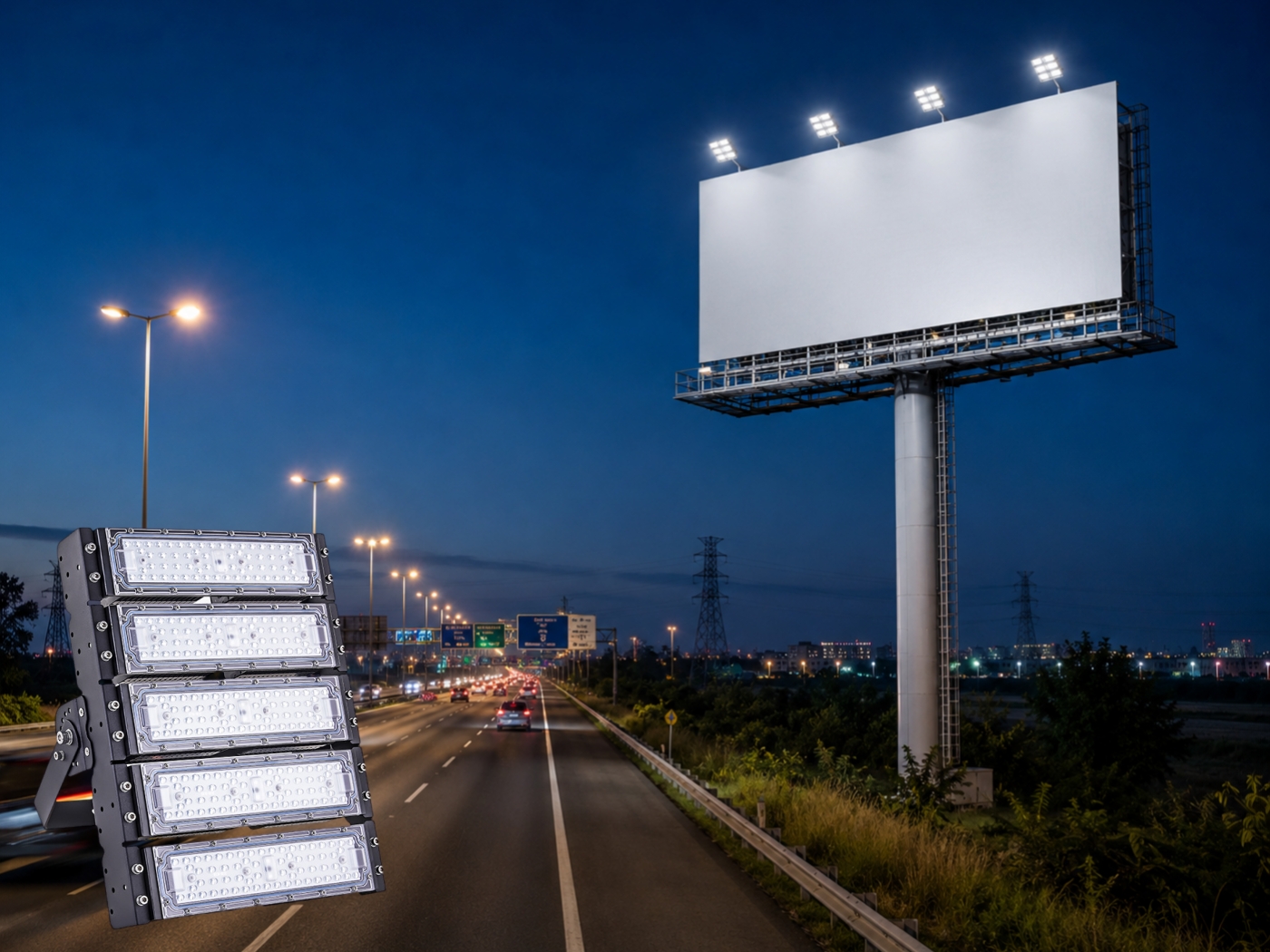

Billboard
Product Description
The WT-PFL-A Series Modular LED Flood Light is designed for industrial parks, warehouses, sports courts, tunnels, construction sites and outdoor area lighting. Featuring high-efficiency LED chips, aluminum housing and PC lens design, it delivers reliable illumination and long service life in demanding outdoor environments. Available in 50W to 600W configurations, the modular structure allows flexible wattage combinations for different lighting projects.
Request a Free Quotation
Looking for a reliable LED street lighting solution?
✓ OEM & ODM Support
✓ Fast Response Within 24 Hours
✓ Worldwide Shipping
Related Products
Explore more outdoor lighting solutions from WYNTEK Lighting.
Module Street Light

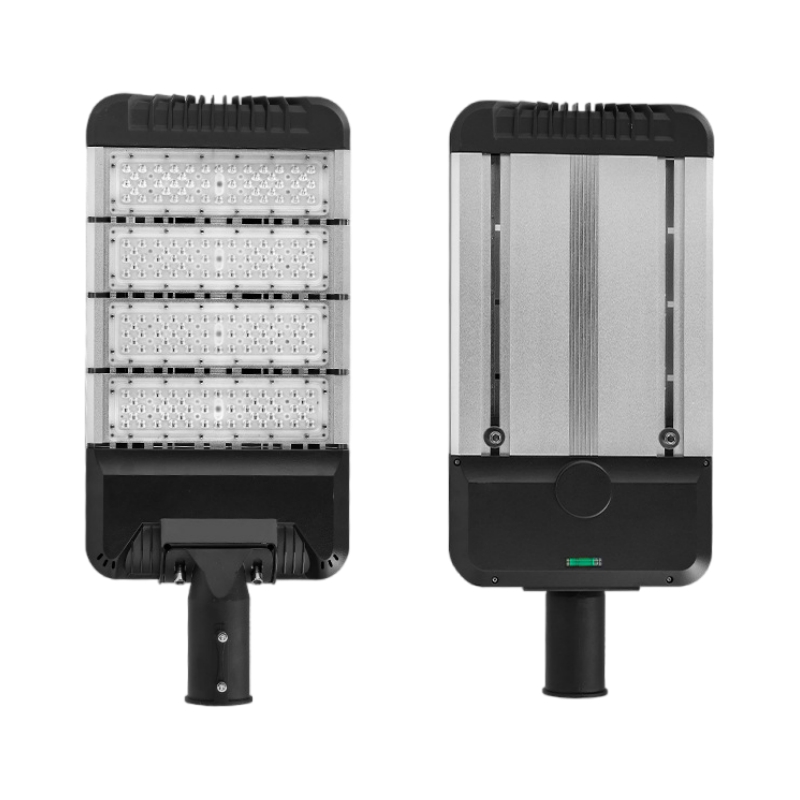

LED Street Light
