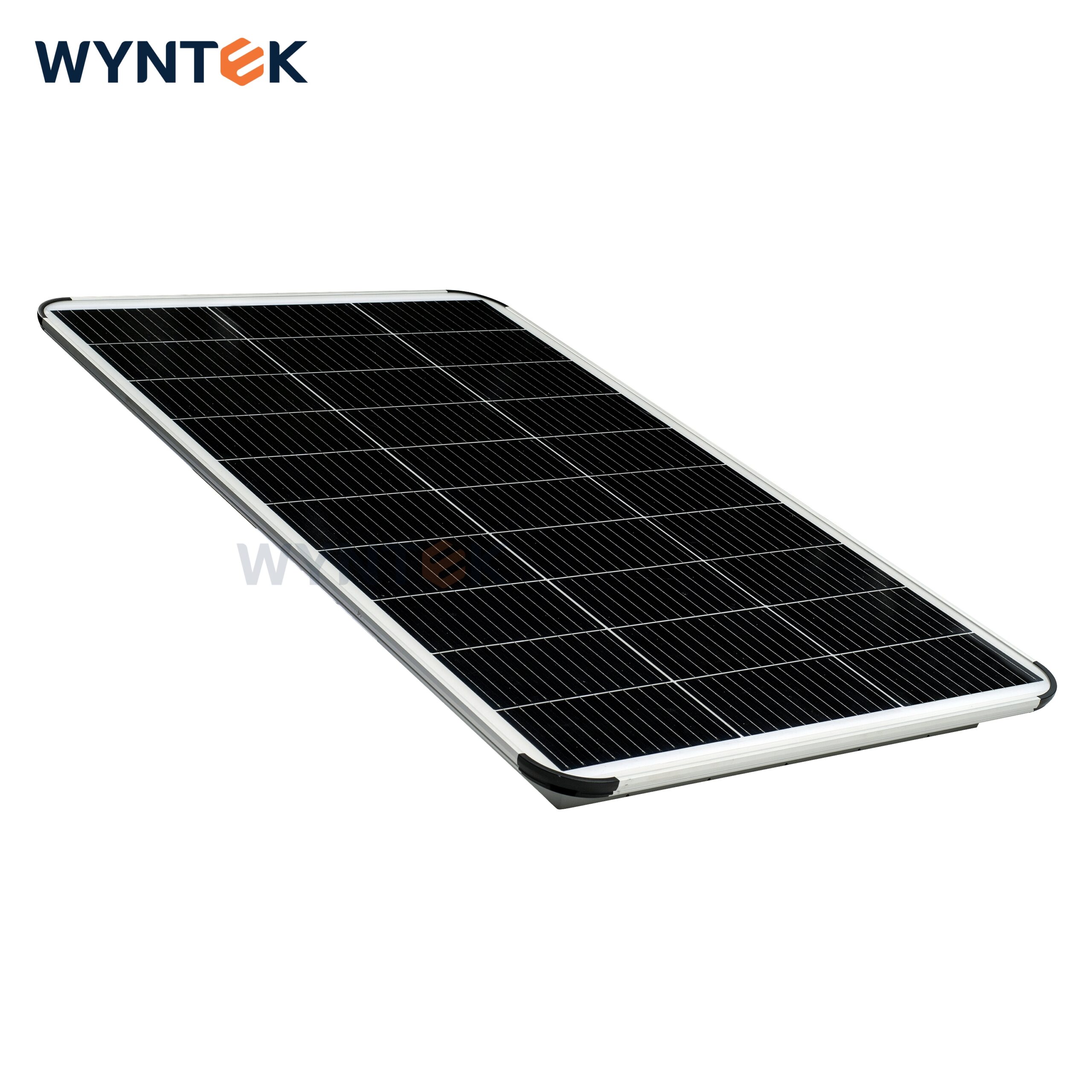

Heavy-Duty Patent All In One Solar Street Light 80w-150w
Short Description:
Model No.: WT-SL-KA
Power: 80W / 100W / 120W / 150W
Efficiency: 220lm/w
Solar Panel: 18V/150W, 36V/180W, 36V/240W, 36V/300W
Battery: 12.8V/60AH, 25.6V/45AH, 25.6V/60AH, 25.6V/72AH
LED Chips: SMD5050, China brand/Bridgelux/Epistar/LumiLEDs
Material: Die Casting Aluminum + PMMA
Warranty: 3 / 5 Years
Applications: Expressway, Main Roads, Highways, Urban Roads, Airport Road, Port Terminal and Municipal road Lighting Projects.
Lead time: 7-15 days
OEM / ODM: Available
Get Quote WhatsAppLighting Features
- Exclusive Private Mold Design
- Exclusive Private Mold Design
- Ultra-High Brightness Output 17600-33000lm
- Designed for 8–18m High Poles
- High-Efficiency Solar Power System
- Intelligent Smart Control
- Ideal for Large-Scale Lighting Projects
- 3-5 Years Warranty
Product Details
Technical Specifications
| Product Name | HEAVY DUTY ALL IN ONE SOLAR STREET LIGHT | |||
| Model No. | WT-SL-KA80 | WT-SL-KA100 | WT-SL-KA120 | WT-SL-KA150 |
| Wattage | 80W | 100W | 120W | 150W |
| Efficiency | 223.31lm/W | 222.92lm/W | 225.92lm/W | 219.13lm/W |
| Luminous Flux | 17600lm | 22000lm | 26400lm | 33000lm |
| Chips Quantity | SMD5050×105pcs | SMD5050×105pcs | SMD5050×210pcs | SMD5050×210pcs |

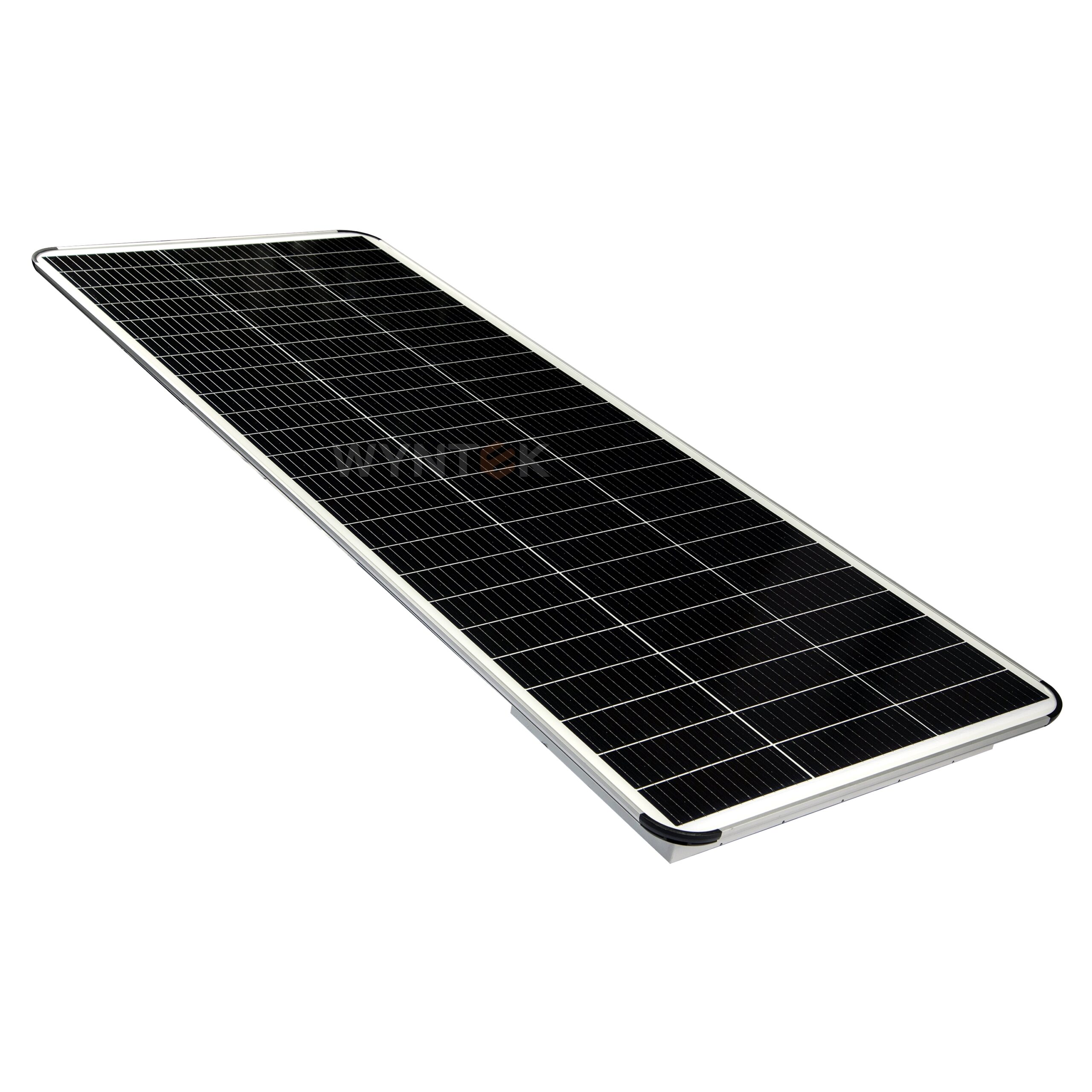

| Solar Panel | Mono 18V/150W | Mono 36V/180W | Mono 36V/240W | Mono 36V/300W |
| Panel Size | 1130×679×4mm | 1370×679×4mm | 1790×679×4mm | 1940×770×4mm |
| Battery | LiFePO₄ 12.8V/60Ah, 768Wh | LiFePO₄ 25.6V/45Ah, 1152Wh | LiFePO₄ 25.6V/60Ah, 1536Wh | LiFePO₄ 25.6V/75Ah, 1920Wh |
| Lamp Size | 1135×684×75mm | 1375×684×75mm | 1795×684×95mm | 1945×775×95mm |
| CRI | 70-80Ra | |||
| CCT | Cold White | |||
| Charging Time | 4-6 Hours | |||
| Discharge | 12-16 Hours, 3-5 Rainy Days | |||
| Beam Angle | 75°×155° | |||
| Waterproof | IP65 | |||
| Material | Die Casting Aluminum + PMMA | |||
| Controller | MPPT Optional | |||
| Function | Light Sensor + Segmented Time Control | |||
| Installation Height | 8-10m | 10-12m | 12-14m | 14-18m |
| Net Weight | 26.3kg | 31.2kg | 49kg | 50kg |
| Warranty | 3 / 5 Years | |||

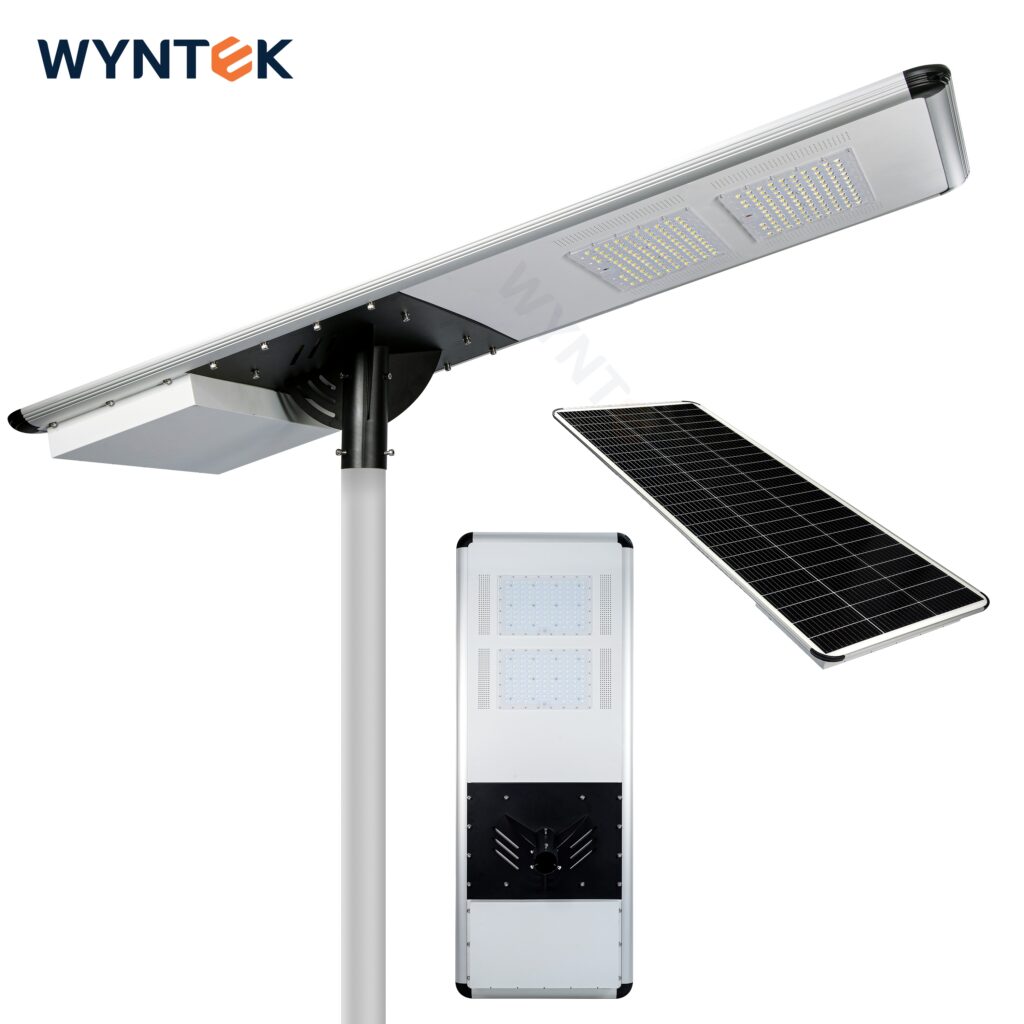

Each Part Introduction

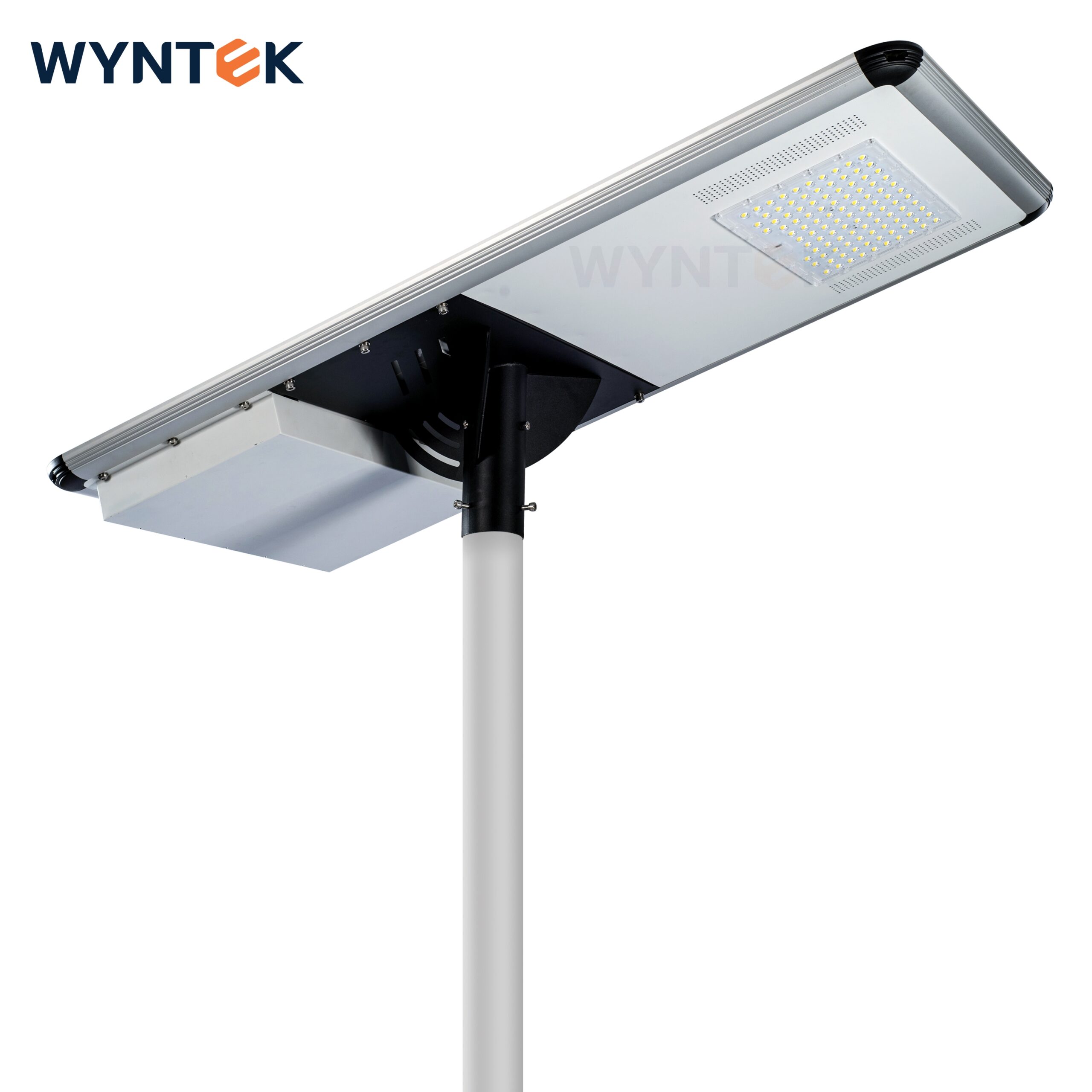

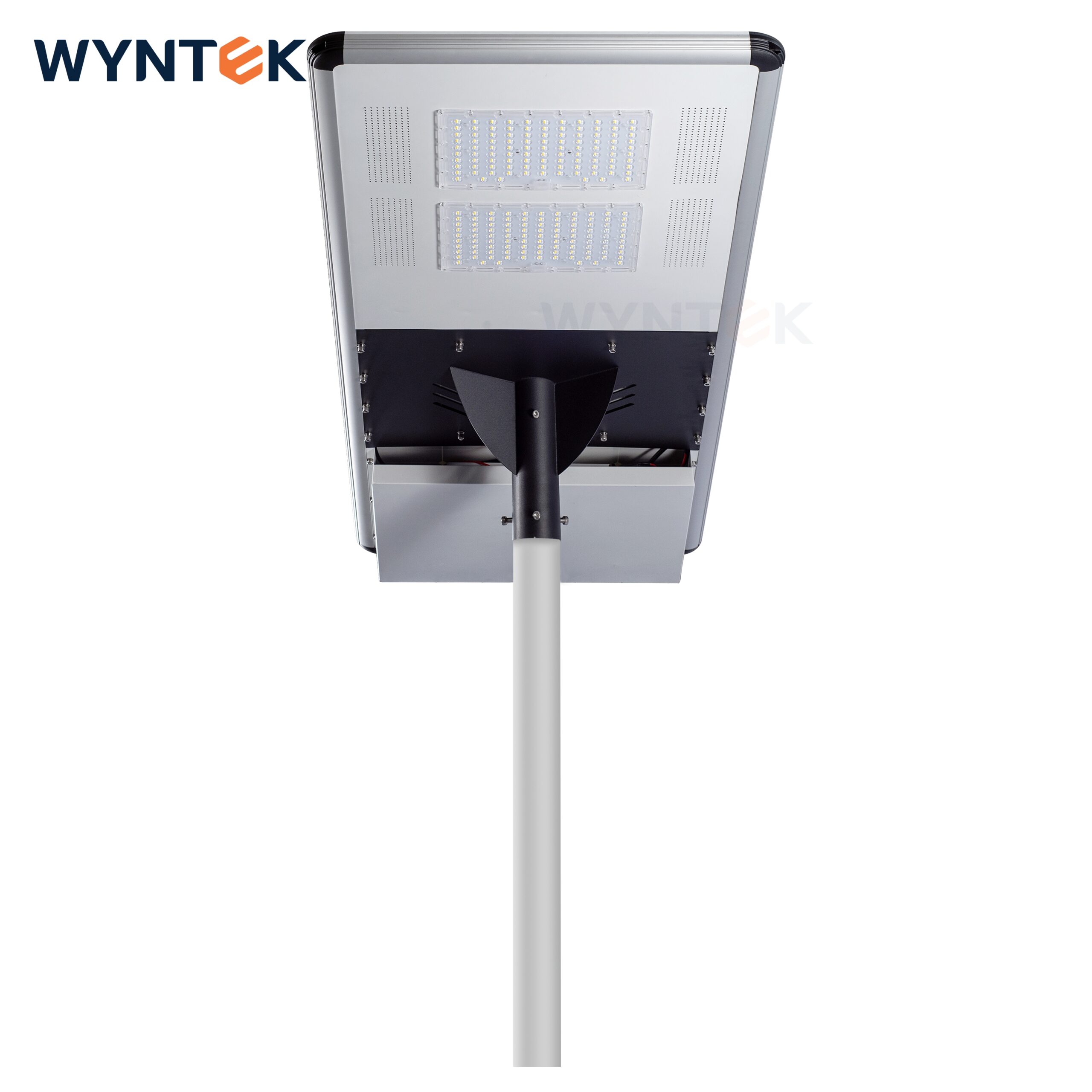

Different Sides Images
Solar Street Light Sizes
Applications

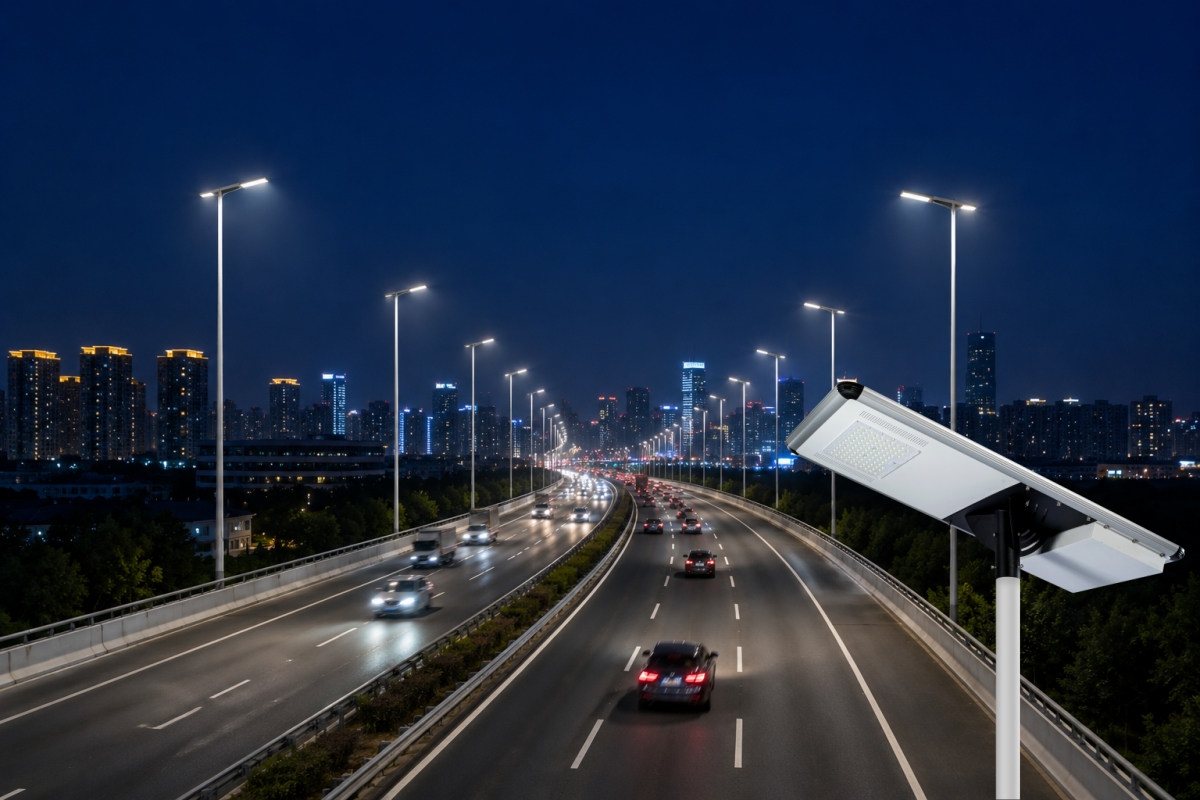

Highway

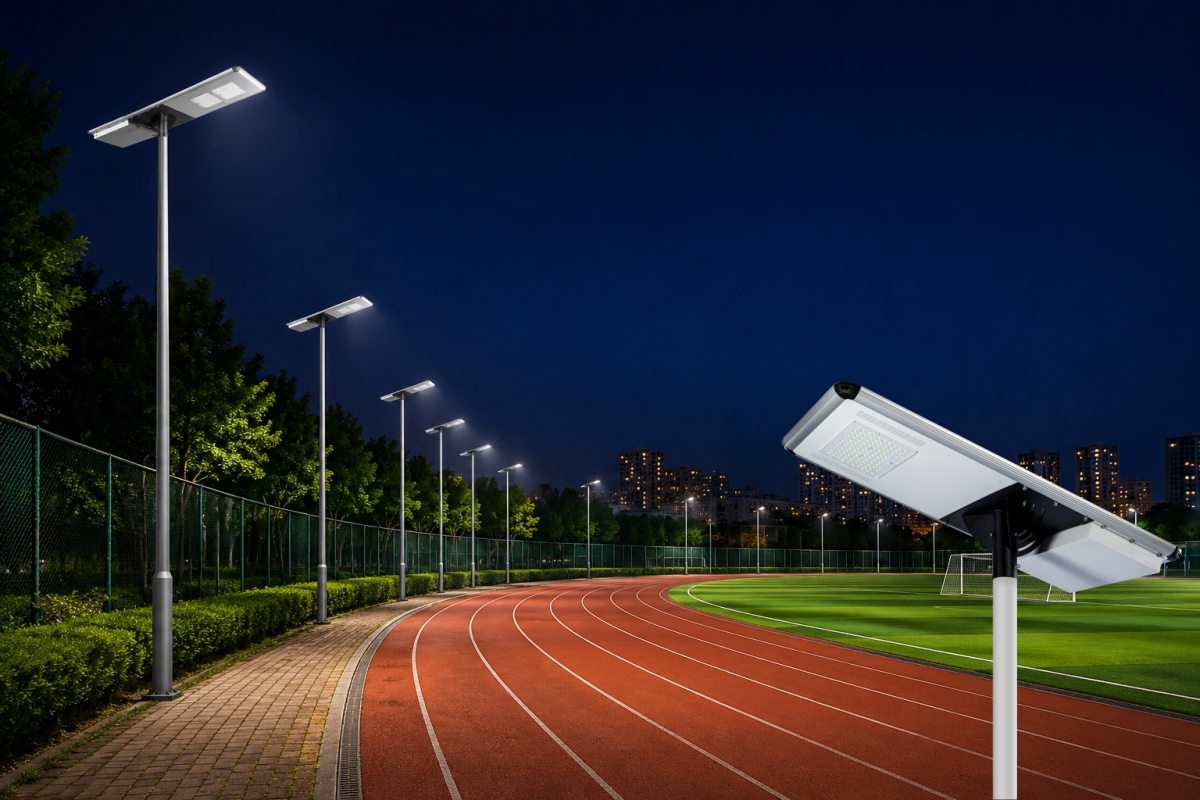

Stadium Road
Main Road

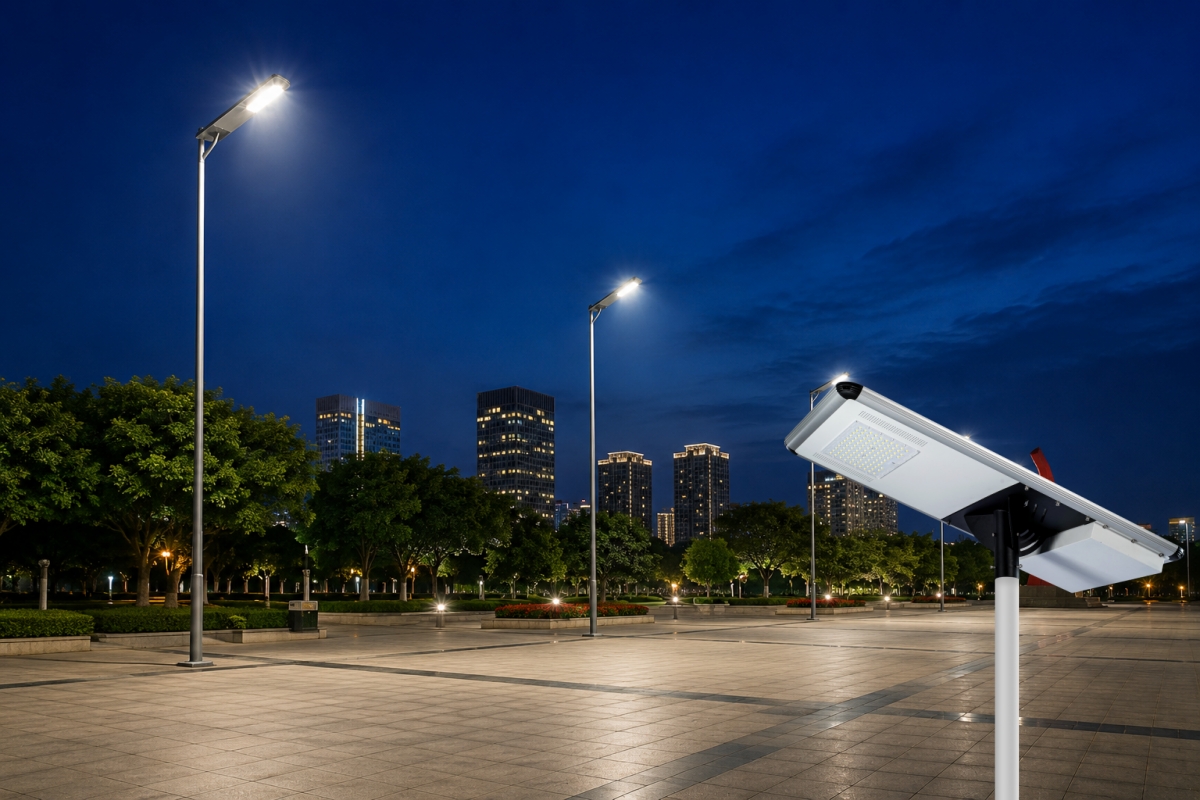

Square
Product Description
Built for demanding municipal and infrastructure projects, the WYNTEK Heavy Duty All-in-One Solar Street Light combines exceptional brightness, structural strength, and intelligent solar technology in one integrated design. Its exclusive private mold construction, reinforced aluminum body, and powerful 17,600–33,000lm output make it the ideal choice for 8–18m high-pole installations. With no trenching or external wiring required, it significantly reduces installation and maintenance costs while delivering dependable, energy-saving illumination for highways, public squares, industrial parks, logistics centers, airports, and other large outdoor areas.
