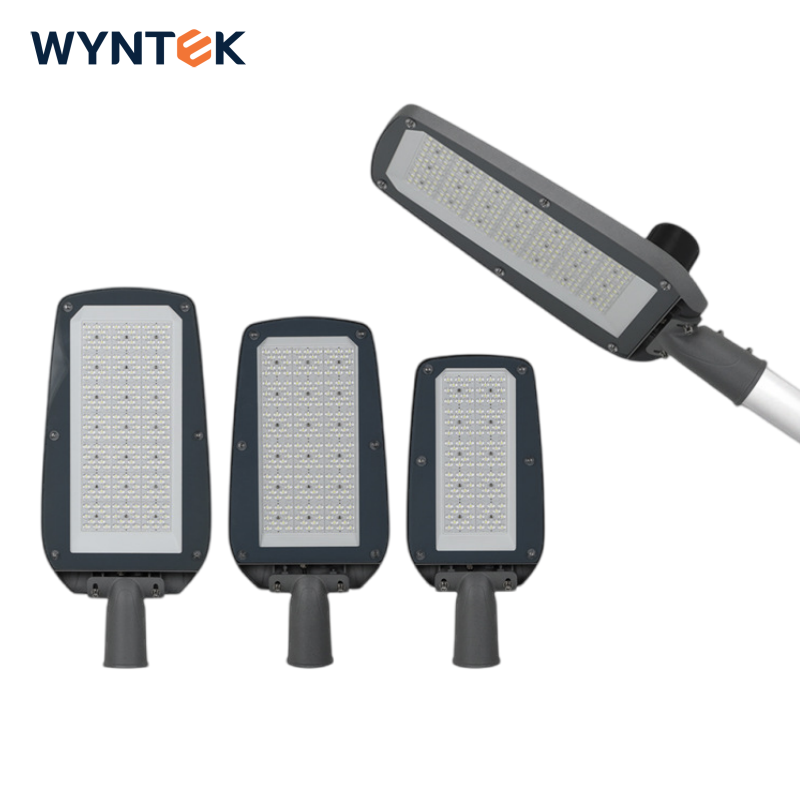

100W 150W 200W 250W 300W IP66 LED Street Light
Short Description:
Model No.: WT-PSL-B
Power: 100W / 150W / 200W / 250W / 300w
Input Voltage: AC85-265V / AC100-277V
Efficiency: 100-150lm/w
LED Chips: SMD3030, China brand/Bridgelux/Epistar/LumiLEDs
Material: Die Casting Aluminum housing case + Glass
Warranty: 3 / 5 Years
Applications: Main Roads, Highways, Urban Roads, Parking Lots, Industrial Parks and Municipal Lighting Projects.
Lead time: 7-15 days
OEM / ODM: Available
Get Quote WhatsAppLighting Features
- External driver & photocell integrated - Easy Maintenance
- High Efficiency up to 150lm/w
- Die casting Aluminum housing case
- IP66 Waterproof protection
- 0-10V / 1-10V / DALI dimming optional
- Multiple Wattages up to 300W
- Lifespan > 50000 Hours
- 3-5 Years Warranty
Product Details
Technical Specifications
| Product Name | LED STREET LIGHT | ||
| Model No. | WT-PSL-B100 | WT-PSL-B200 | WT-PSL-B300 |
| Wattage | 100W | 200W | 300W |
| Input Voltage | AC85-265V / AC100-277V, 50/60Hz | ||
| Driver Brand | China Brand / Inventronics / Meanwell / Philips | ||
| Efficiency | 130-150lm/w | ||
| Chips Brand | China Brand / Lumileds / Bridgelux / Epistar | ||
| LEDs Qty | 3030/120pcs | 3030/212pcs | 3030/252pcs |
| Power Factor | ≥0.95 | ||
| CRI | 70-80Ra | ||
| CCT | 3000K / 4000K / 6000K | ||
| Beam Angle | 80×150° | ||
| Waterproof | IP66 | ||
| Material | Die Casting Aluminum Housing + PC Lens + Glass | ||
| Lamp Size | 495×263×40mm | 560×263×40mm | 635×290×40mm |
| Holder Dia | Ø60mm | ||
| Warranty | 3-5 Years | ||

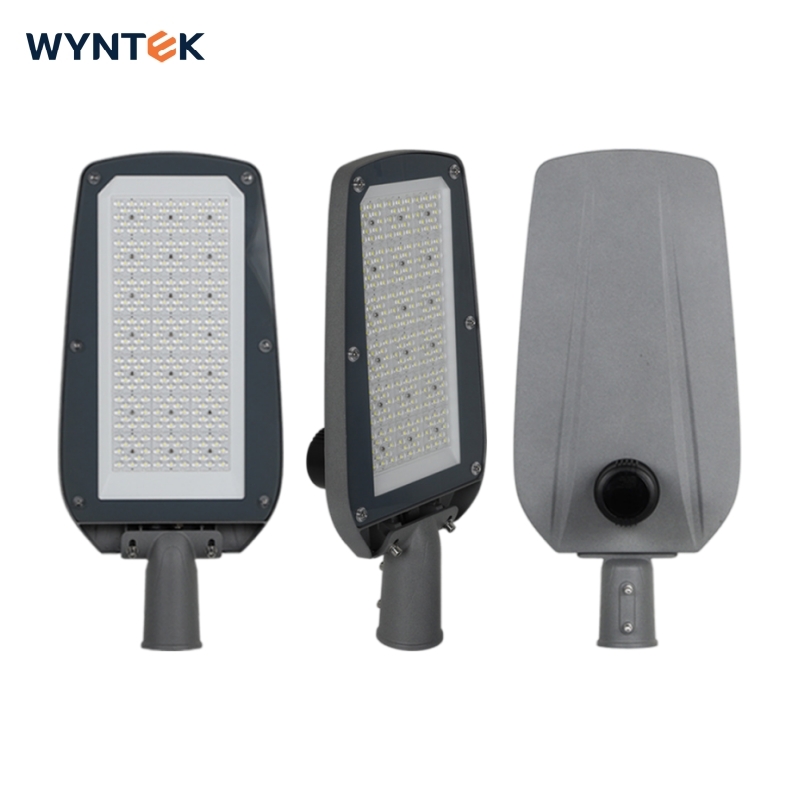

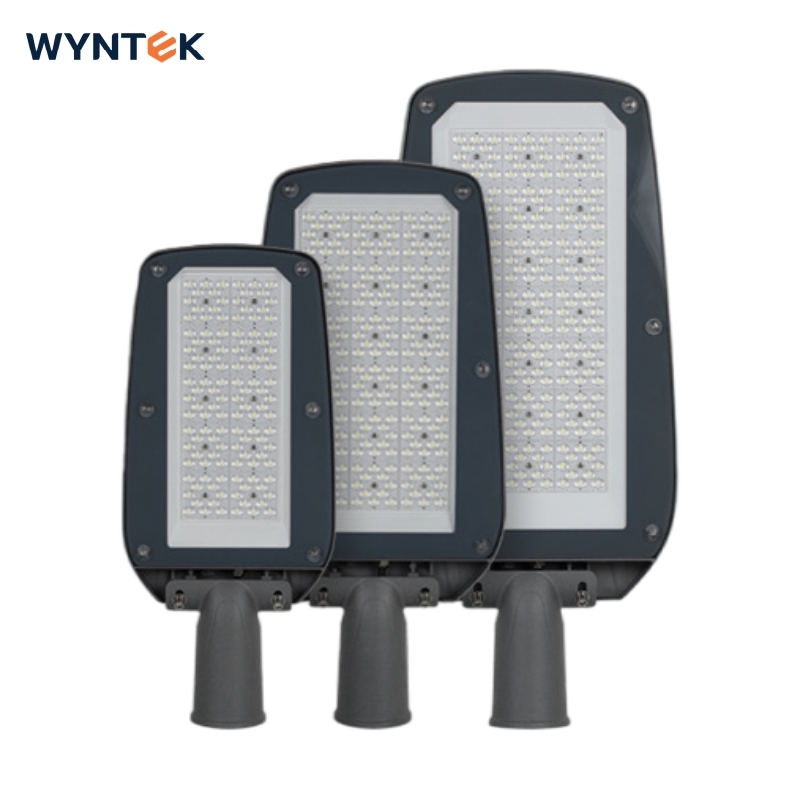

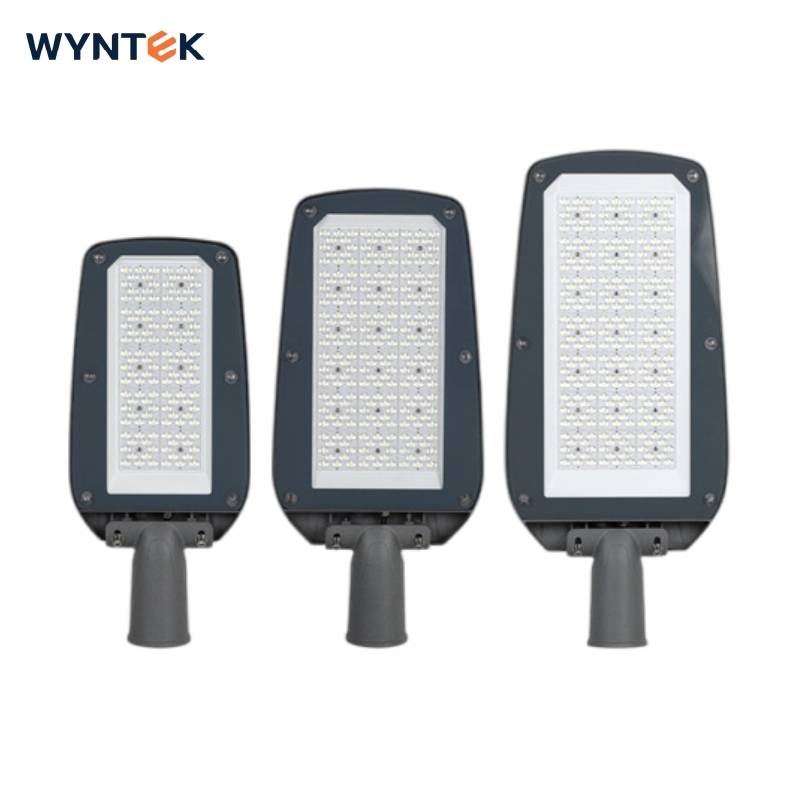

Actual Product Images
Production Photos
Applications

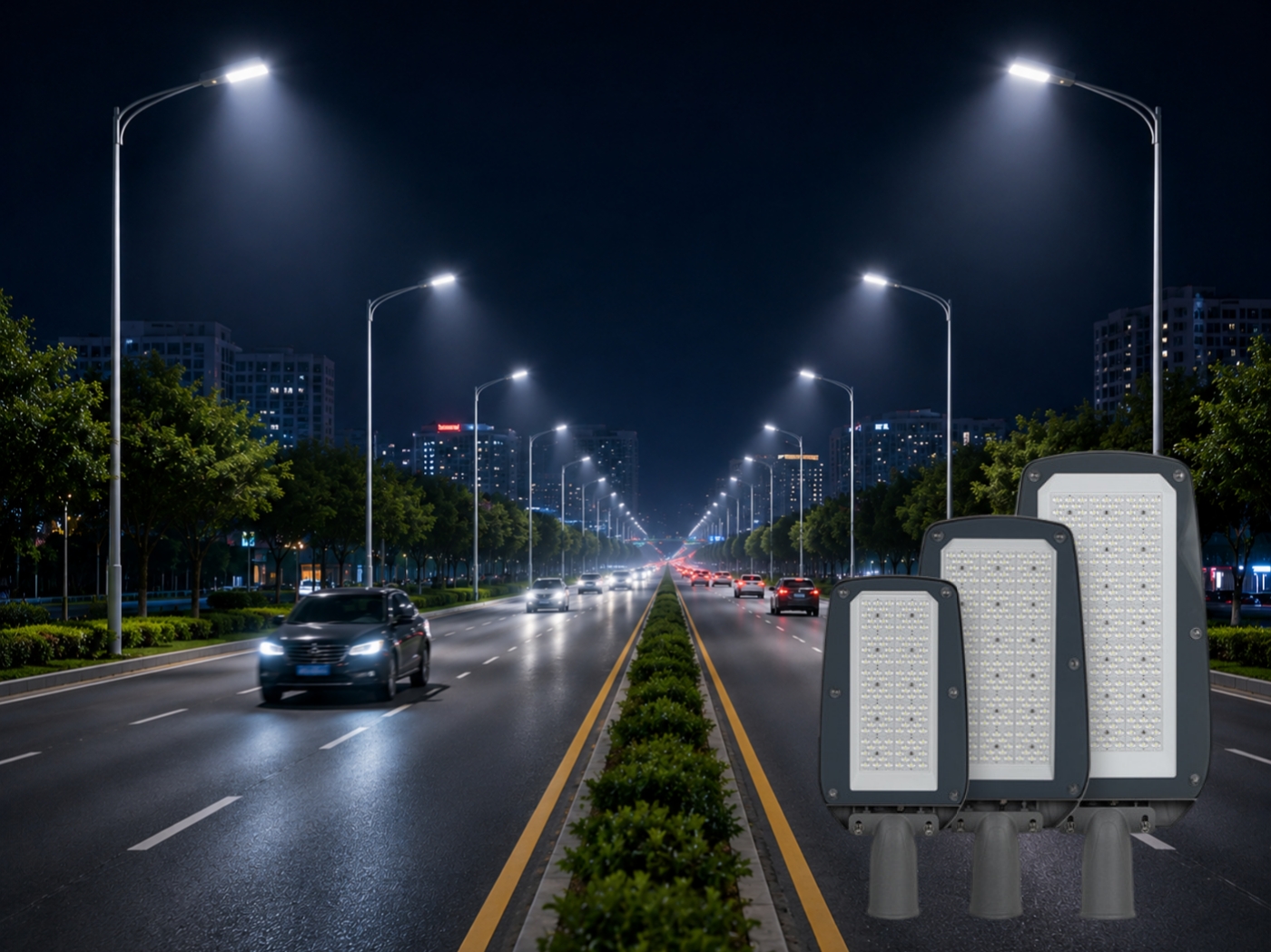

Main Roads

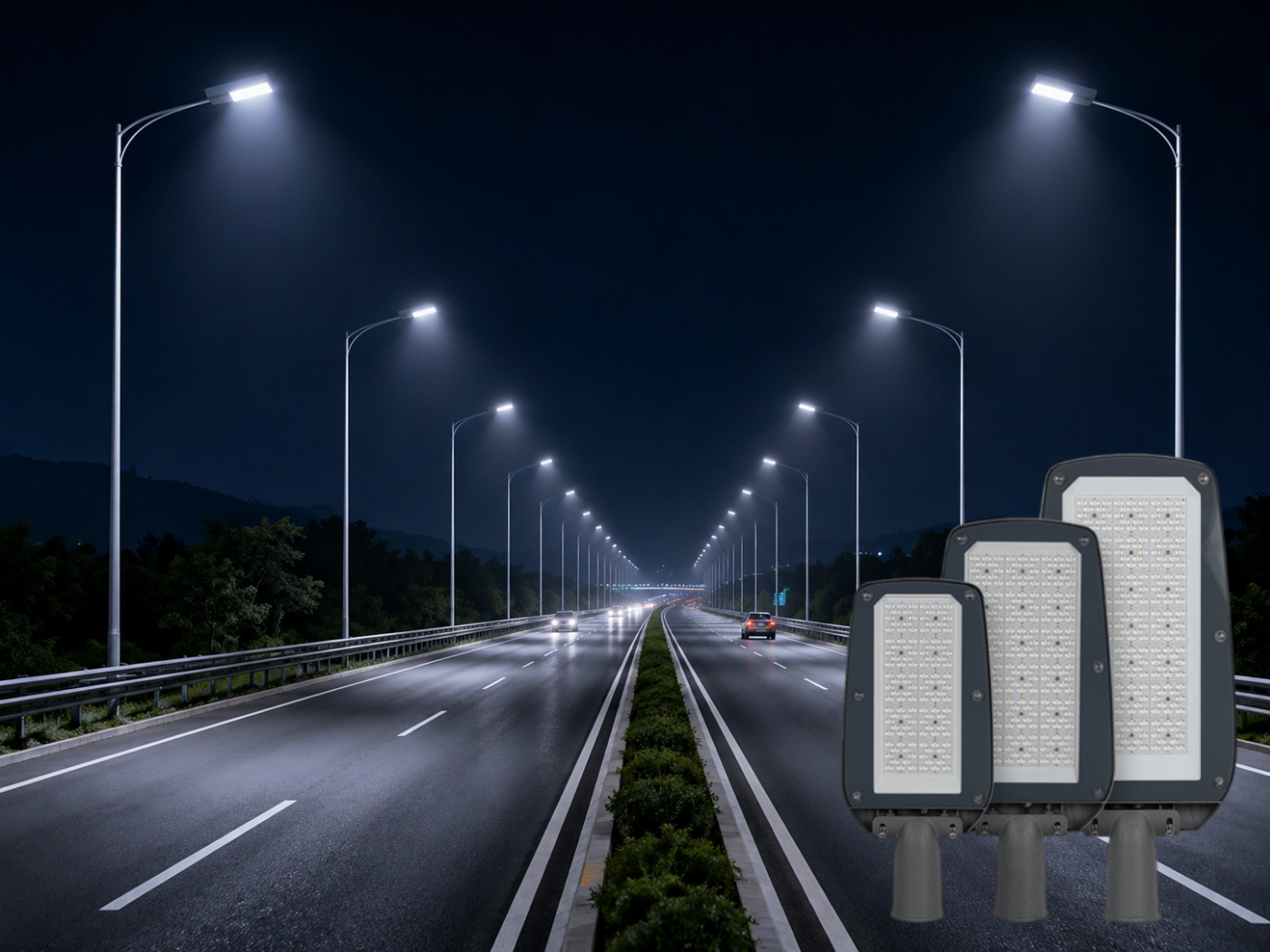

Highways

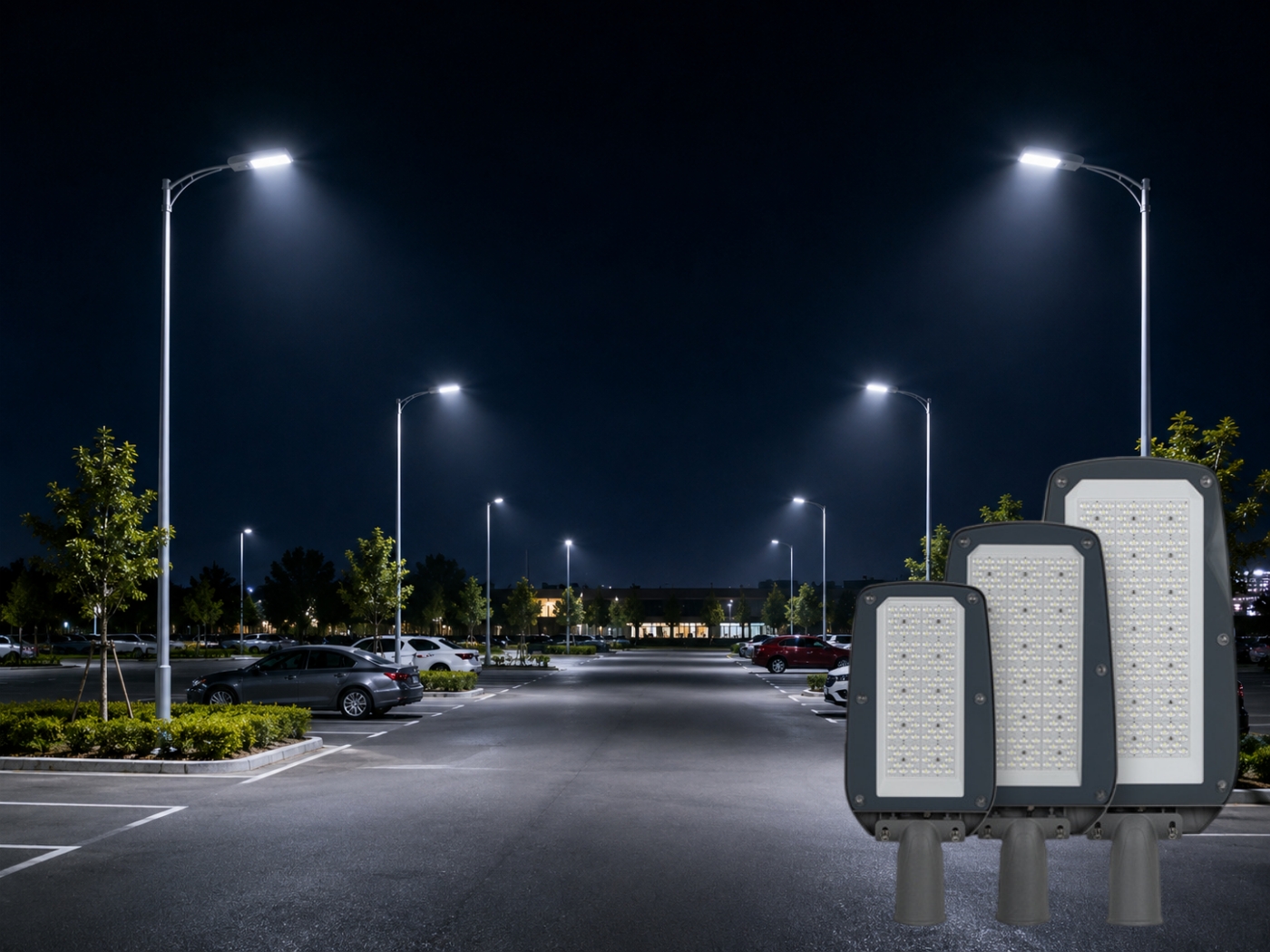

Parking Lots

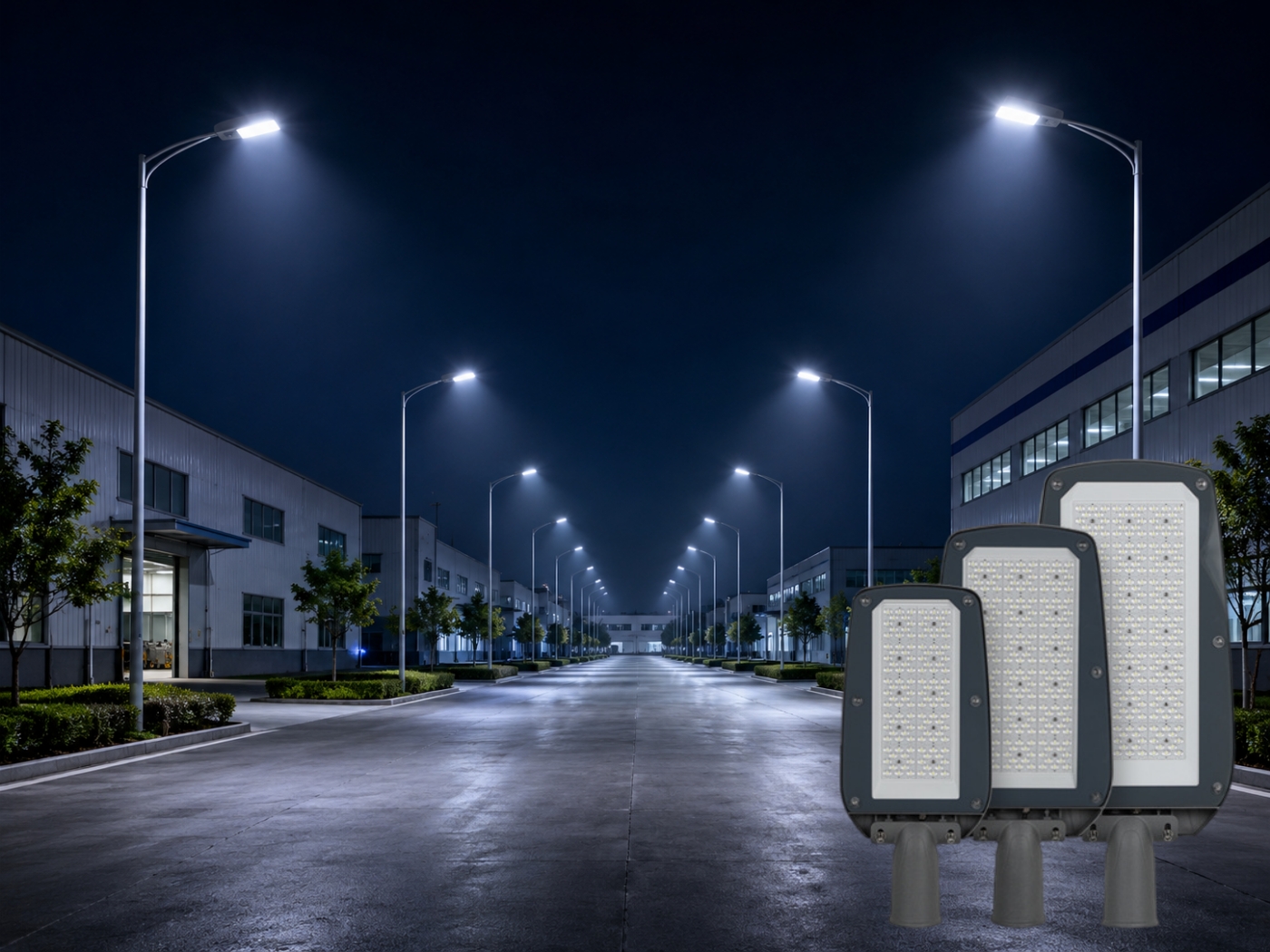

Industrial Parks
Product Description
The WT-PSL-B Series LED Street Light is designed for municipal roads, highways, industrial parks, parking lots and other outdoor lighting applications. Featuring high-efficiency SMD3030 LEDs to offer 150lm/w, a die-cast aluminum housing and IP66 waterproof protection, it delivers reliable performance and long service life in harsh outdoor environments. Available in 100W, 150W, 200W, 250W and 300W options, the important is, this LED street light with a integrated external driver + photocell, very easy for maintenance, support smart control solution with 0-10V/1-10V/DALI dimming to meet various project requirements. It is an ideal solution for urban road lighting, commercial areas and public infrastructure projects.
