Modular LED stadium light 100w - 1000w IP66
Short Description:
Model No.: WT-SDL-E
Power: 100W / 200W / 300W / 400W / 500W / 600W / 800W / 1000W
Input Voltage: AC85-265V / AC100-277V
Efficiency: 120-160lm/w
LED Chips: SMD3030/5050, China brand/Bridgelux/Epistar/LumiLEDs
Material: Die Casting Aluminum lamp body + PC lens
Warranty: 3 / 5 Years
Applications: Football Stadium, Basketball Court, Baseball Field, Sports Stadium, Port & Dock, Airport, Mining Area and outdoor high mast Lighting Projects.
Lead time: 7-15 days
OEM / ODM: Available
Get Quote WhatsAppLighting Features
- 360° Independently Adjustable Modules
- High Efficiency up to 160lm/w
- Flexible Modular Assembly - Easy to make stock
- Multiple Wattages up to 1000W
- IP65 Weatherproof Protection
- Excellent Heat Dissipation
- Lifespan > 50000 Hours
- 3-5 Years Warranty
Product Details
Technical Specifications
| Product Name | MODULAR LED STADIUM LIGHT (Single Column) | ||||
| Model No. | WT-SDL-E100 | WT-SDL-E200 | WT-SDL-E300 | WT-SDL-E400 | WT-SDL-E500 |
| Wattage | 100W | 200W | 300W | 400W | 500W |
| Input Voltage | AC85-265V / AC100-277V, 50/60Hz | ||||
| Driver Brand | China Brand / Inventronics / Meanwell / Philips / Lifud | ||||
| Efficiency | 120-160lm/W | ||||
| Chips Brand | SMD3030/5050, China Brand / Lumileds / Bridgelux / Epistar | ||||
| Power Factor | ≥0.95 | ||||
| CRI | 70-80Ra | ||||
| CCT | 3000K / 4000K / 6000K | ||||
| Beam Angle | 90° | ||||
| Waterproof | IP65 | ||||
| Material | Aluminum Body + PC Lens | ||||
| Lamp Size | 360×170×70mm | 360×360×70mm | 360×485×70mm | 360×670×70mm | 360×830×70mm |
| Net Weight | 1.5kg | 3.5kg | 5.0kg | 6.5kg | 8.3kg |
| Warranty | 3-5 Years | ||||
| Product Name | MODULAR LED STADIUM LIGHT (Double Column) | |||
| Model No. | WT-SDL-E400 | WT-SDL-E600 | WT-SDL-E800 | WT-SDL-E1000 |
| Wattage | 400W | 600W | 800W | 1000W |
| Input Voltage | AC85-265V / AC100-277V, 50/60Hz | |||
| Driver Brand | China Brand / Inventronics / Meanwell / Philips / Lifud | |||
| Efficiency | 130-210lm/W | |||
| Chips Brand | SMD3030/5050, China Brand / Lumileds / Bridgelux / Epistar | |||
| Power Factor | ≥0.95 | |||
| CRI | 70-80Ra | |||
| CCT | 3000K / 4000K / 6000K | |||
| Beam Angle | 90° | |||
| Waterproof | IP65 | |||
| Material | Aluminum Body + PC Lens | |||
| Lamp Size | 690×335×70mm | 690×495×70mm | 690×680×70mm | 690×840×70mm |
| Net Weight | 6.9kg | 10.0kg | 13.9kg | 17.0kg |
| Warranty | 3-5 Years | |||

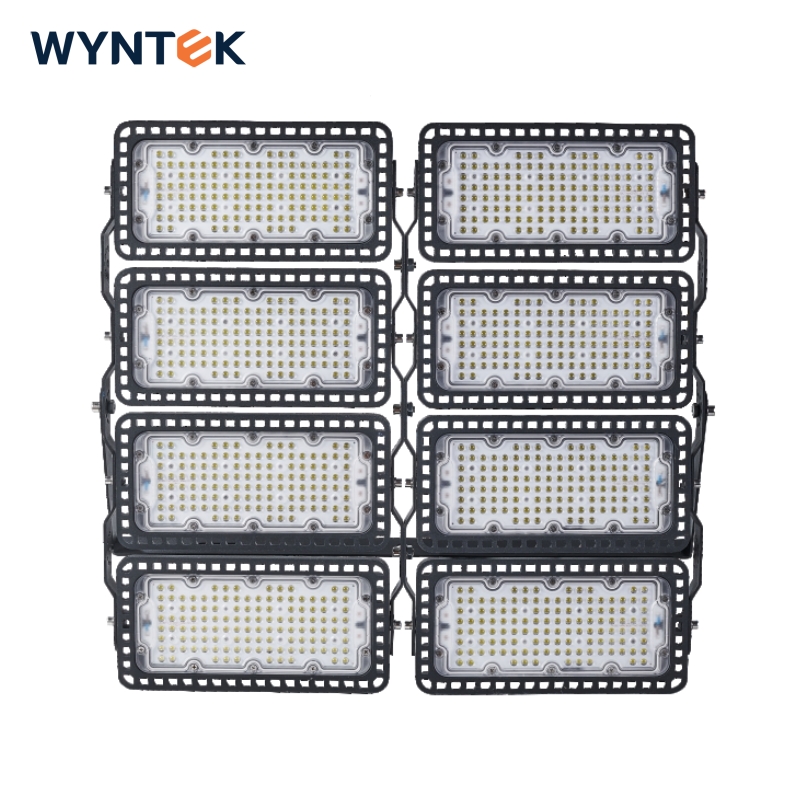

Actual Product Images

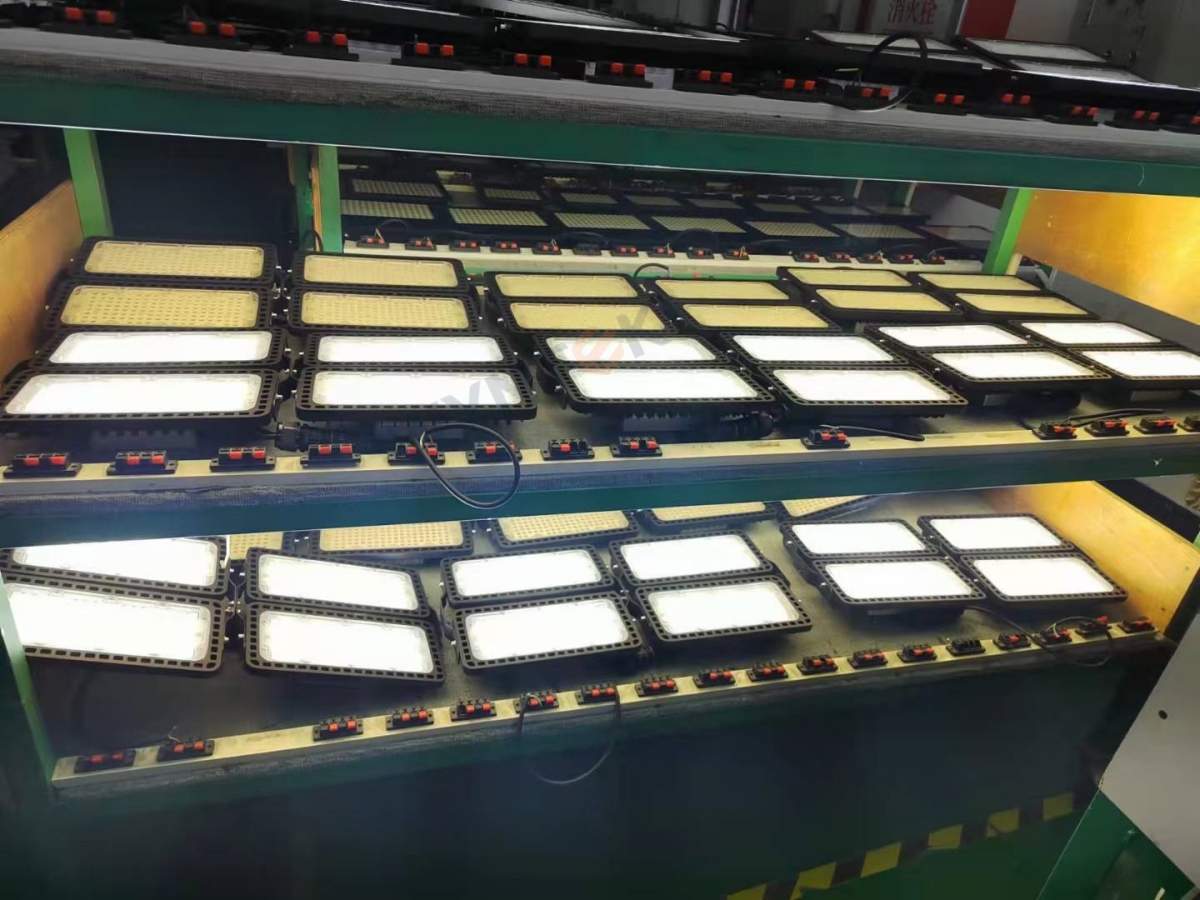

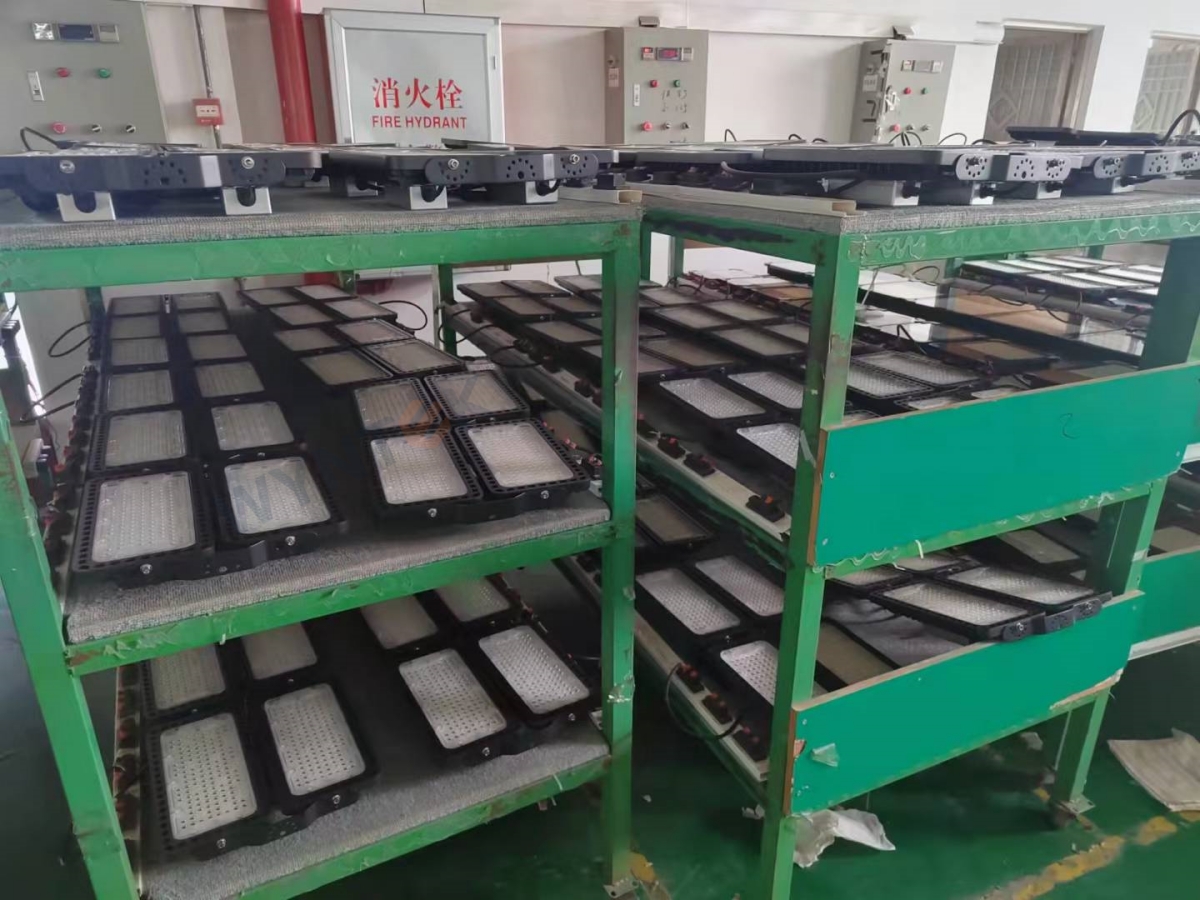

Production Photos
Applications

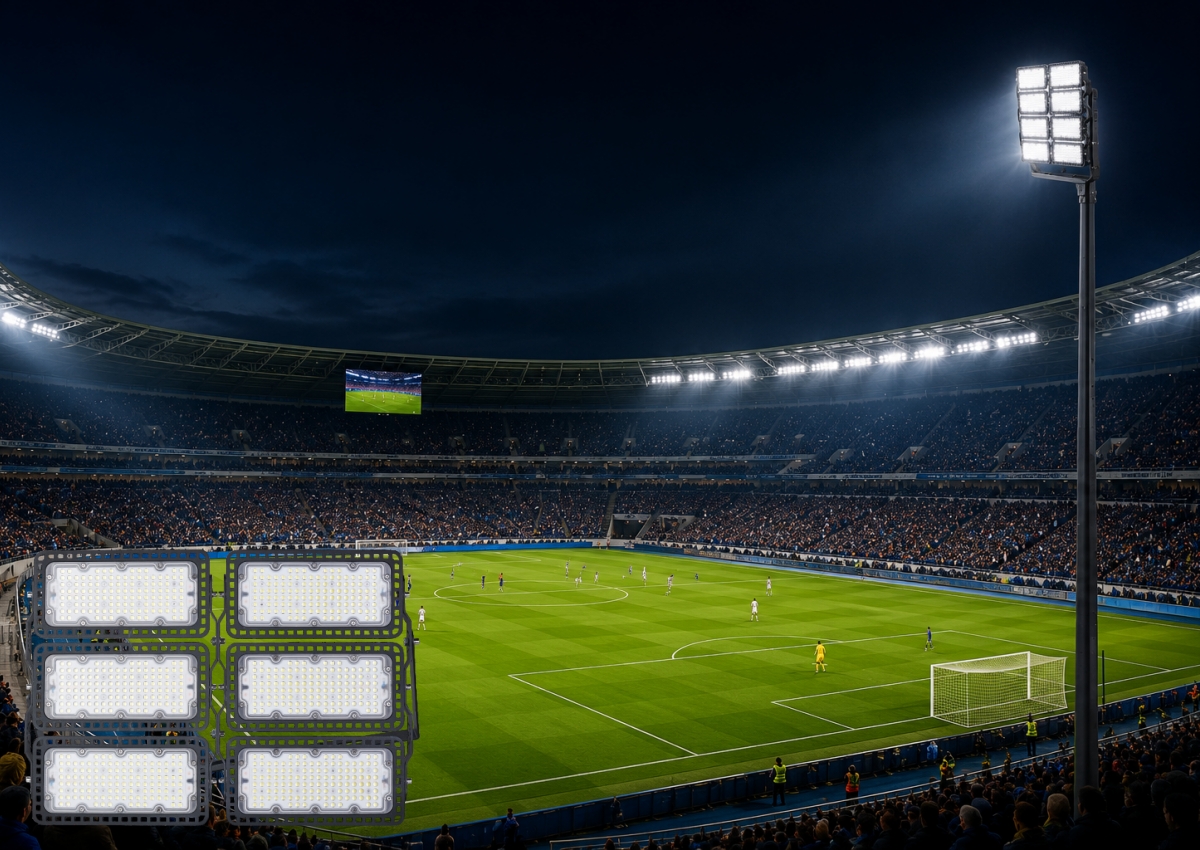

Football Stadium
Airport
Dock

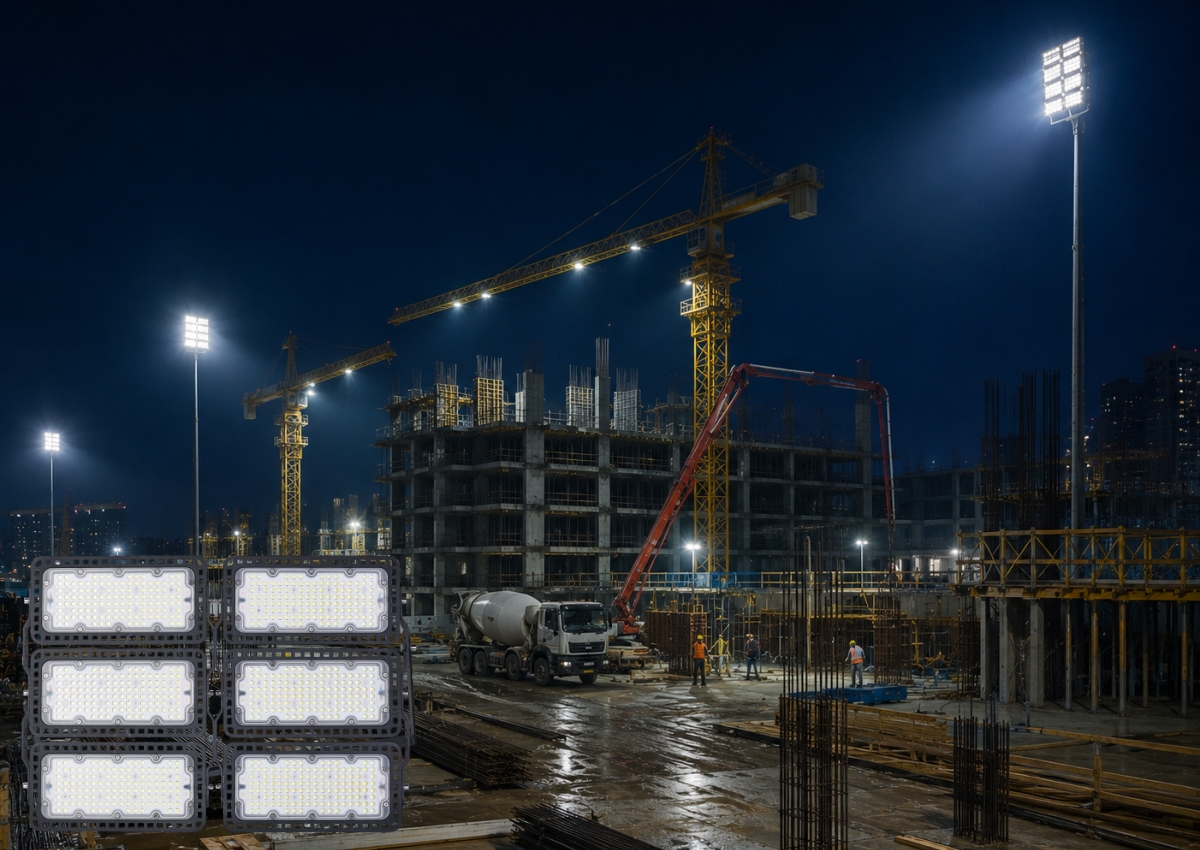

Construction Site
Product Description
The WYNTEK Modular LED Stadium Light is designed for professional sports lighting and large outdoor areas. Each LED module can be independently rotated 360°, allowing precise beam adjustment and customized light distribution for maximum lighting uniformity. Its modular design enables flexible assembly into different wattage configurations, making installation, maintenance, and inventory management more efficient.With a luminous efficacy of 120–160 lm/W, premium LED components, and excellent heat dissipation, the fixture delivers reliable, energy-efficient performance with a service life of over 50,000 hours. Rated IP65, it is an ideal lighting solution for stadiums, sports courts, ports, airports, container yards, and other high-mast lighting applications.
Request a Free Quotation
Looking for a reliable LED stadium lighting solution?
✓ OEM & ODM Support
✓ Fast Response Within 24 Hours
✓ Worldwide Shipping
