Hot 2026 Project Solar Street Light 30w 40w 60w 80w 100w 120w
Short Description:
Model No.: WT-SL-KH
Power: 30W / 40W / 60W / 80W / 100W / 120W
Efficiency: 200lm/w
Solar Panel: 18V/50W, 60W, 80W, 105W, 130W, 150W
Battery: 3.2V/72AH, 100AH, 12.8V/30AH, 45AH, 60AH, 75AH
LED Chips: SMD3030, China brand/Bridgelux/Epistar/LumiLEDs
Material: Aluminum housing case + PC lens
Warranty: 3 / 5 Years
Applications: Expressway, Main Roads, Highways, Urban Roads, Airport Road, Port Terminal and Municipal road Lighting Projects.
Lead time: 7-15 days
OEM / ODM: Available
Get Quote WhatsAppLighting Features
- High Efficiency up to 200lm/w-6000-24000lm
- MPPT Intelligent Controller
- Light Sensor + Time Control + optional Microwave Motion Sensor
- 12–16 Hours Lighting & 5–13m Installation
- High-Efficiency Mono Solar Panel
- Long-Life LiFePO₄ Battery
- IP65 Waterproof & All-Weather Design
- 3-5 Years Warranty
Product Details
Technical Specifications
| Product Name | ALL IN ONE SOLAR STREET LIGHT | |||||
|---|---|---|---|---|---|---|
| Model No. | WT-SL-KH30 | WT-SL-KH40 | WT-SL-KH60 | WT-SL-KH80 | WT-SL-KH100 | WT-SL-KH120 |
| Wattage | 30W | 40W | 60W | 80W | 100W | 120W |
| Efficiency | 202.67 lm/W | 203.55 lm/W | 200.28 lm/W | 198.02 lm/W | 197.03 lm/W | 198.68 lm/W |
| Luminous Flux | 6000 lm | 8000 lm | 12000 lm | 16000 lm | 20000 lm | 24000 lm |
| LED Chips | SMD3030 × 96 pcs | SMD3030 × 144 pcs | SMD3030 × 192 pcs | SMD3030 × 240 pcs | SMD3030 × 288 pcs | SMD3030 × 336 pcs |
| Solar Panel | Mono 18V / 50W | Mono 18V / 60W | Mono 18V / 80W | Mono 18V / 105W | Mono 18V / 130W | Mono 18V / 150W |
| Battery | LiFePO4 3.2V / 72Ah | LiFePO4 3.2V / 100Ah | LiFePO4 12.8V / 30Ah | LiFePO4 12.8V / 45Ah | LiFePO4 12.8V / 60Ah | LiFePO4 12.8V / 75Ah |
| Lamp Size | 828×408×150mm | 933×408×150mm | 1173×408×150mm | 1388×408×150mm | 1603×408×150mm | 2006×408×150mm |
| CRI | 70–80Ra | |||||
| CCT | Cold White | |||||
| Charging Time | 4–6 Hours | |||||
| Discharge Time | 12–16 Hours, 3–5 Rainy Days | |||||
| Beam Angle | 75° × 155° | |||||
| Waterproof | IP65 | |||||
| Material | Aluminum Housing + PC Lens | |||||
| Controller | MPPT Controller | |||||
| Cloud Platform | IoT Control Management System (Optional) | |||||
| Function | Light Sensor + Segmented Time Control + Microwave Sensor | |||||
| Installation Height | 5–7m | 6–8m | 8–10m | 10–11m | 11–12m | 12–13m |
| Net Weight | 10.5kg | 11.5kg | 13.5kg | 16.0kg | 18.5kg | 22kg |
| Warranty | 3-5 Years | |||||
Each Part Introduction

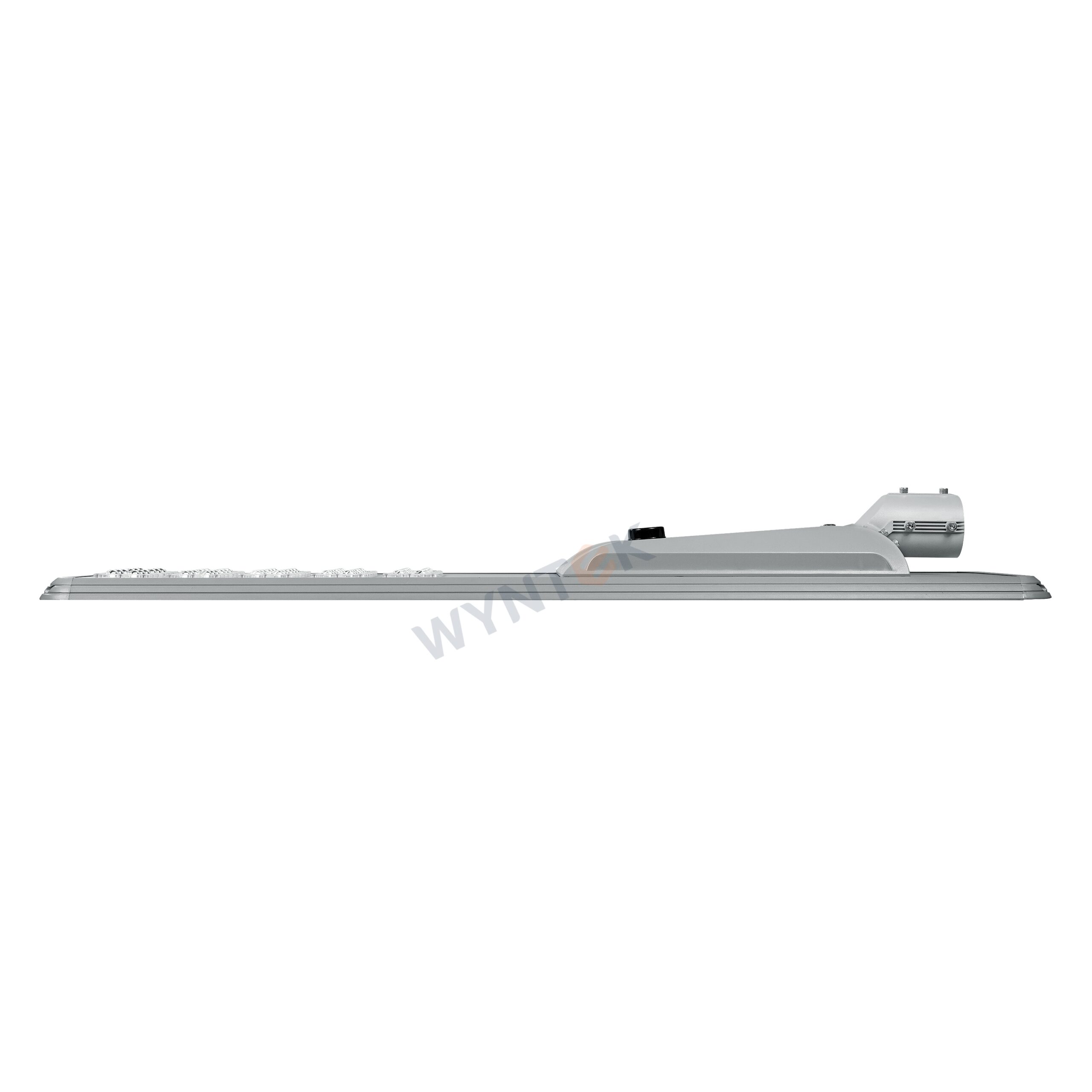

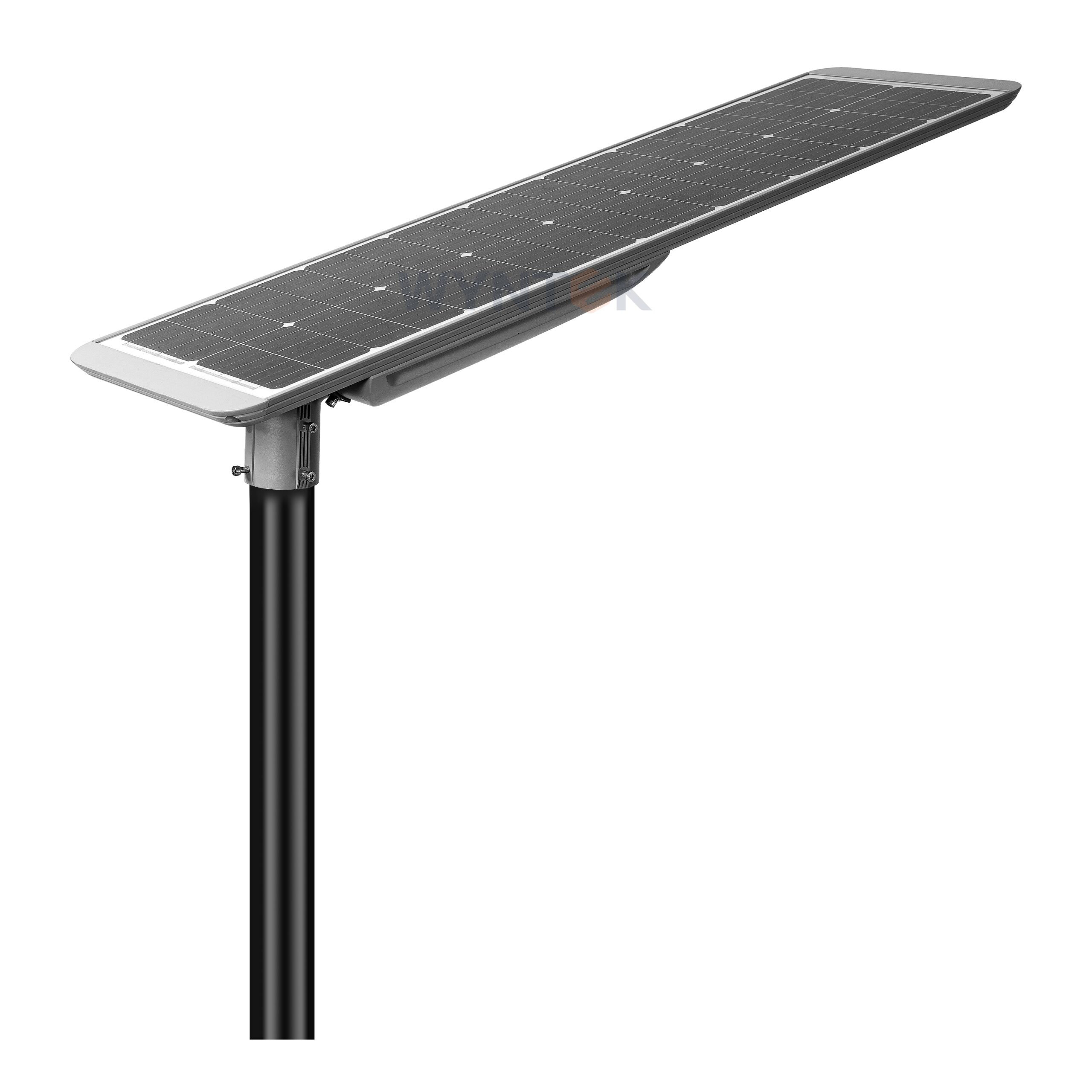

Actual Product Images

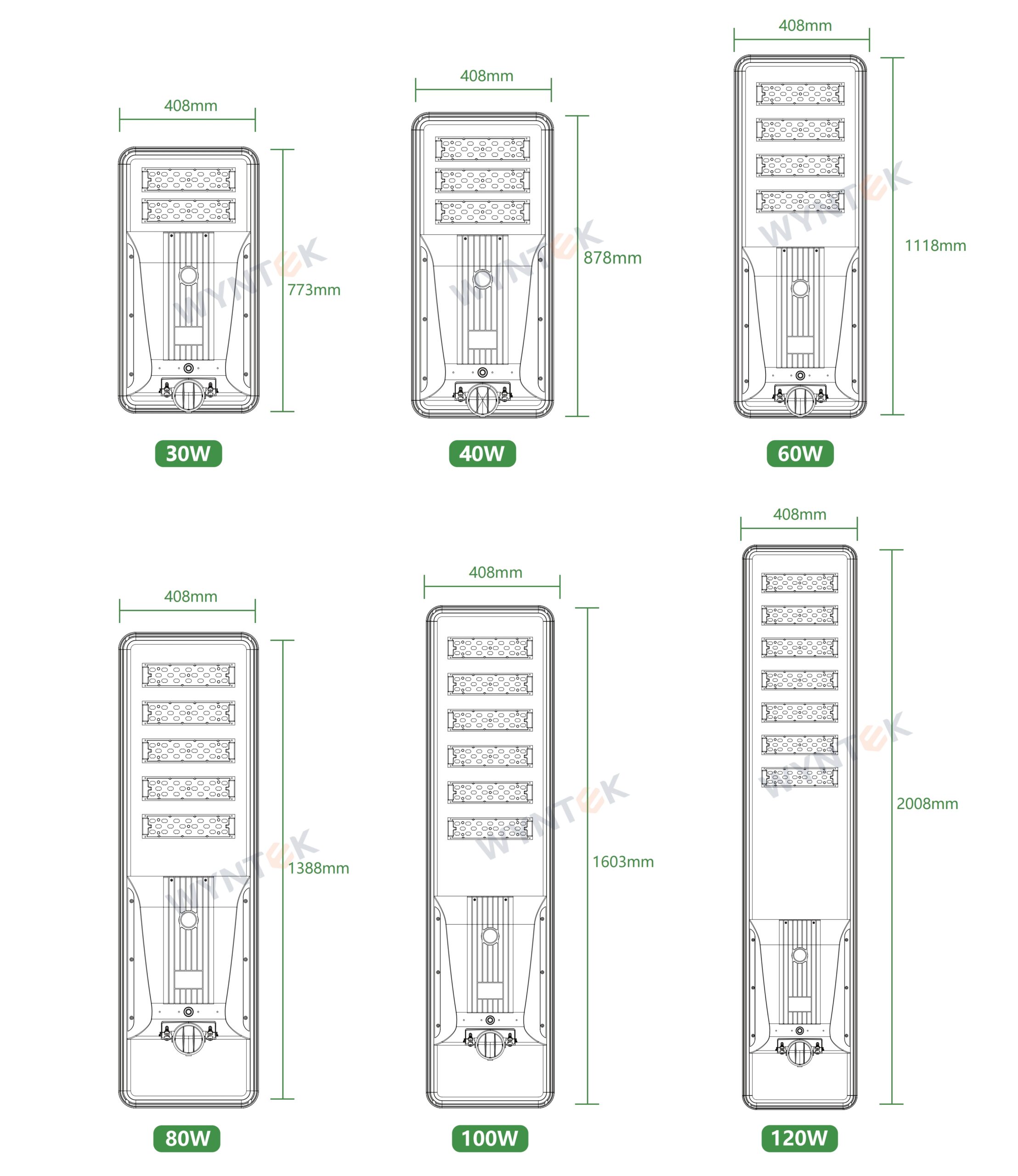

Solar Street Light Sizes

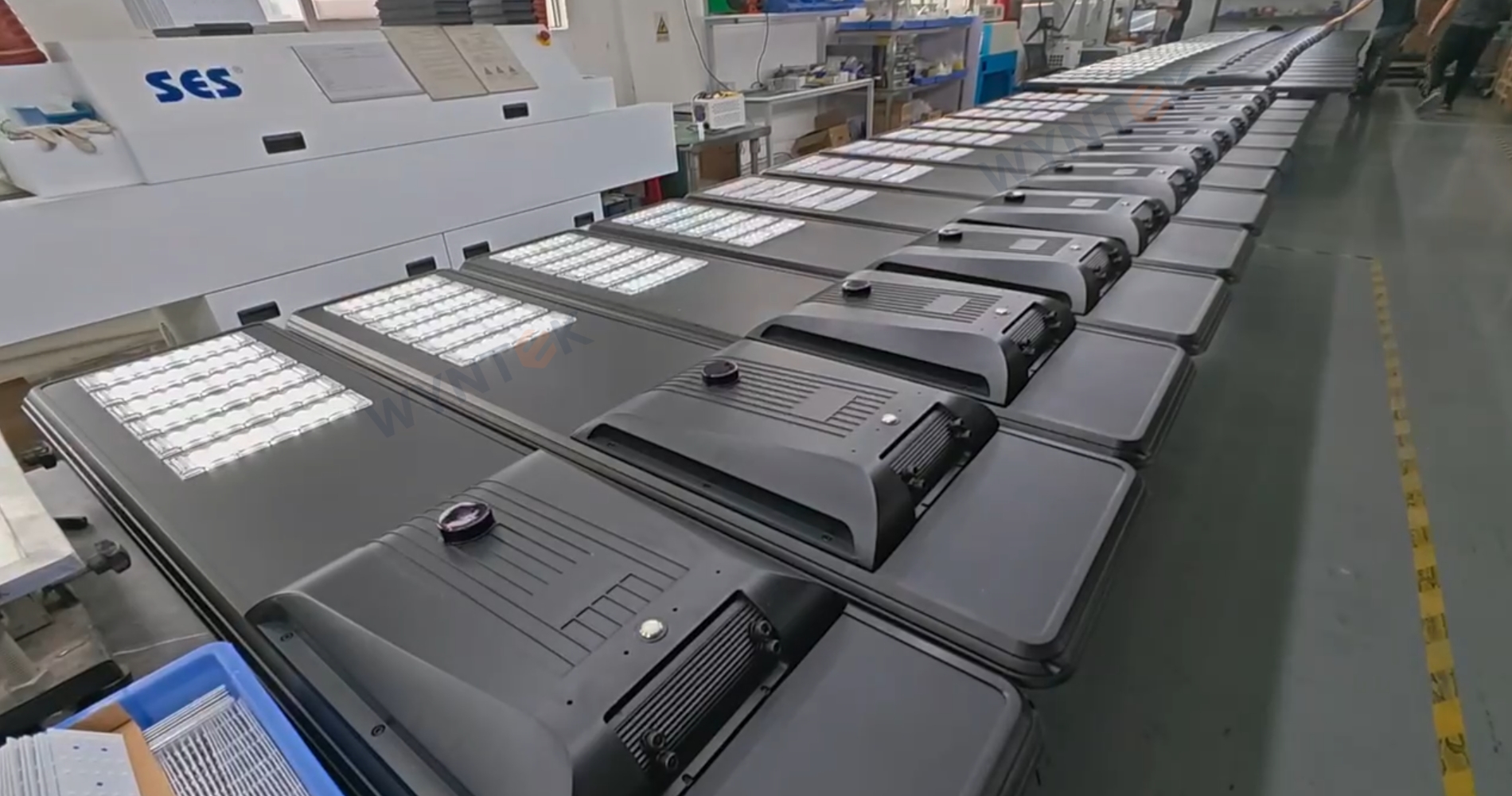

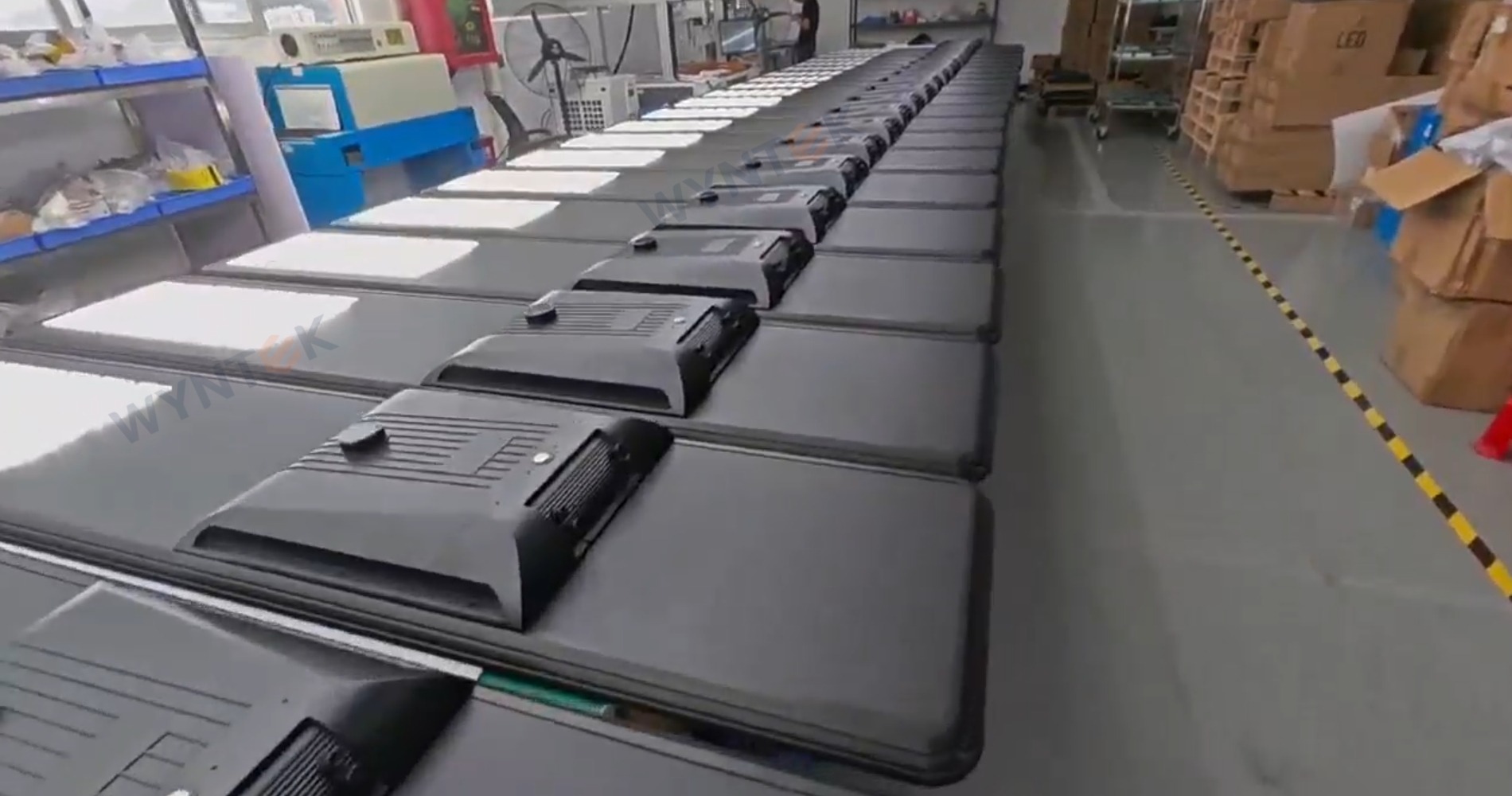

Production Photos
Applications

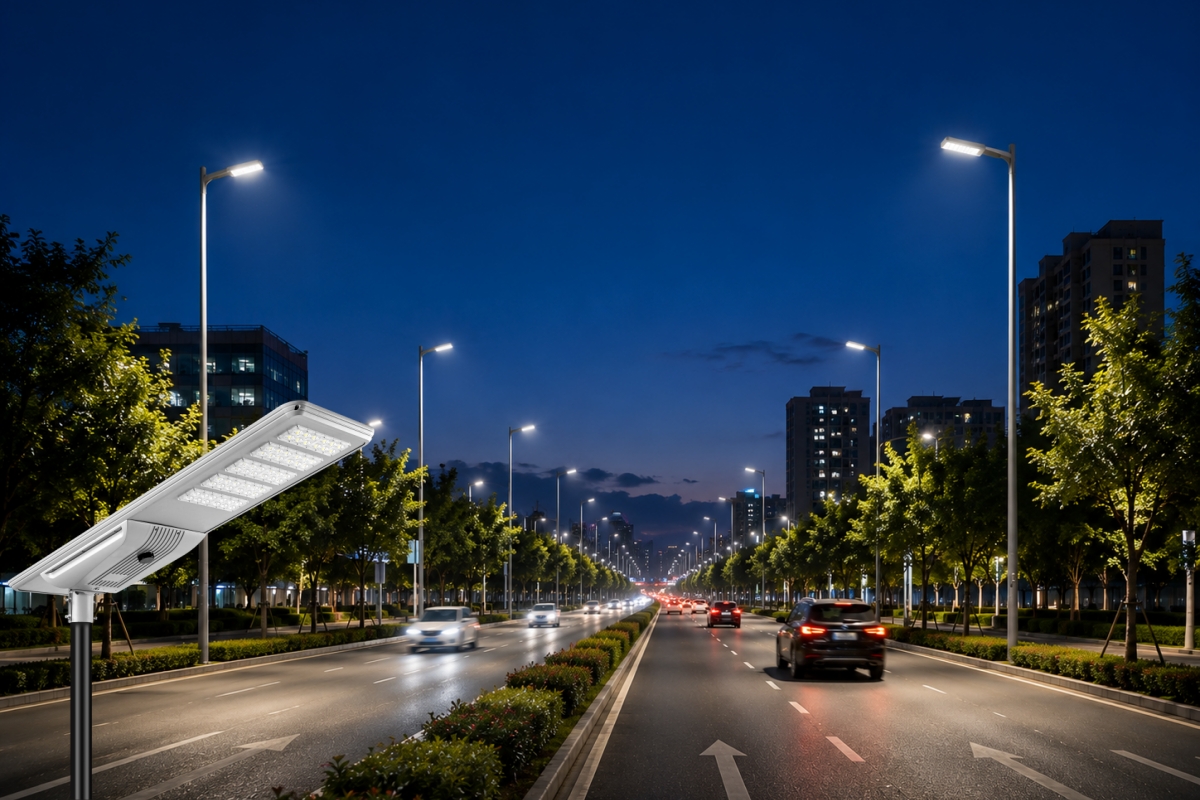

City Road

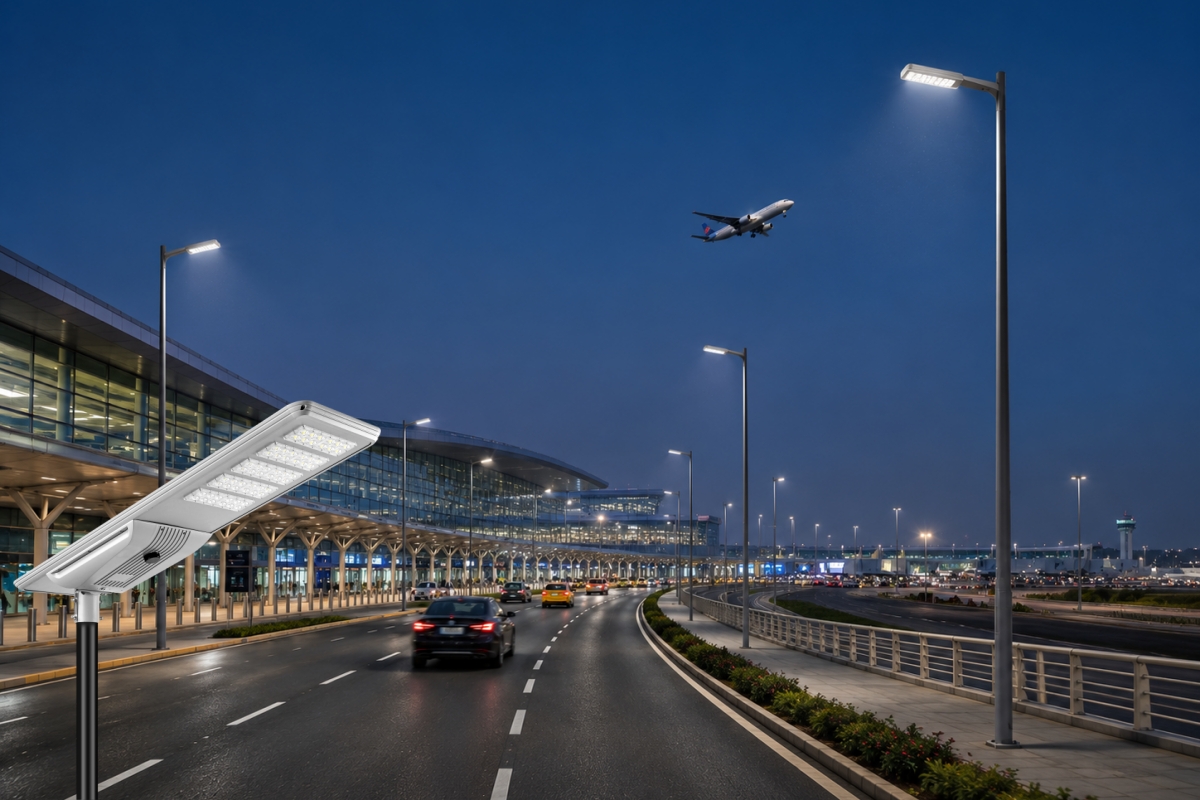

Airport Road
Crossroads
Expressway
Product Description
The WYNTEK Heavy Duty All-in-One Solar Street Light is a high-performance solar lighting solution designed for highways, municipal roads, airports, industrial parks, parking lots and other outdoor applications. It combines a high-efficiency monocrystalline solar panel, premium LiFePO₄ battery, MPPT intelligent controller, and high-brightness LED module into a compact all-in-one design for easy installation and low maintenance.Equipped with a light sensor, segmented time control, and an optional microwave motion sensor, it provides intelligent energy management, improved charging efficiency and optimized lighting performance. Delivering up to 202.67 lm/W with 6000–24000 lm of luminous output, IP65 protection and a recommended installation height of 5–13 meters, it ensures reliable, energy-efficient illumination for a wide range of outdoor lighting projects.Engineered for long-lasting performance, lower maintenance costs and sustainable outdoor lighting solutions.
Request a Free Quotation
Looking for a reliable Solar LED lighting solution?
✓ OEM & ODM Support
✓ Fast Response Within 24 Hours
✓ Worldwide Shipping
