LED linear highbay light 50w 100w 150w 200w 250w IP65
Short Description:
Model No.: WT-HBL-D
Power: 50W / 100W / 150W / 200W / 250W
Input Voltage: AC85-265V / AC100-277V
Efficiency: 150-170lm/w
LED Chips: SMD3030, China brand/Bridgelux/Epistar/LumiLEDs
Material: Die Casting Aluminum lamp body + PC lens
Warranty: 3 / 5 Years
Applications: Warehouse, Factory, Logistics Center, Supermarket, Gymnasium and Indoor Lighting Projects
Lead time: 7-15 days
OEM / ODM: Available
Get Quote WhatsAppLighting Features
- High Efficiency up to 170lm/w
- 0-10V Dimming Available
- 90° / 120° Beam Angle for option
- Motion sensor for option
- Durable Aluminum Housing
- IP65 Waterproof Protection
- Wide Range of Applications
- 3-5 Years Warranty
Product Details
Technical Specifications
| Product Name | LED LINEAR HIGH BAY LIGHT | ||||
| Model No. | WT-HBL-D50 | WT-HBL-D100 | WT-HBL-D150 | WT-HBL-D200 | WT-HBL-D250 |
| Wattage | 50W | 100W | 150W | 200W | 250W (240W) |
| Input Voltage | AC85-265V / AC100-277V, 50/60Hz | ||||
| Driver Brand | China Brand / Inventronics / Meanwell / Philips / Lifud | ||||
| Efficiency | 150-170lm/W | ||||
| Chips Brand | SMD3030, China Brand / Lumileds / Bridgelux / Epistar | ||||
| LEDs Qty | 3030/96pcs | 3030/192pcs | 3030/288pcs | 3030/384pcs | 3030/480pcs |
| Power Factor | ≥0.95 | ||||
| CRI | 70-80Ra | ||||
| CCT | 3000K / 4000K / 6000K | ||||
| Beam Angle | 90° / 120° | ||||
| Waterproof | IP65 | ||||
| Material | Aluminum Body + PC Lens | ||||
| Function | 0-10V Dimming & Motion Sensor | ||||
| Lamp Size | 264×104×72mm | 510×104×72mm | 754×104×72mm | 1002×104×72mm | 1248×104×72mm |
| Net Weight | 1.2kg | 1.8kg | 2.4kg | 3.0kg | 3.6kg |
| Warranty | 3-5 Years | ||||

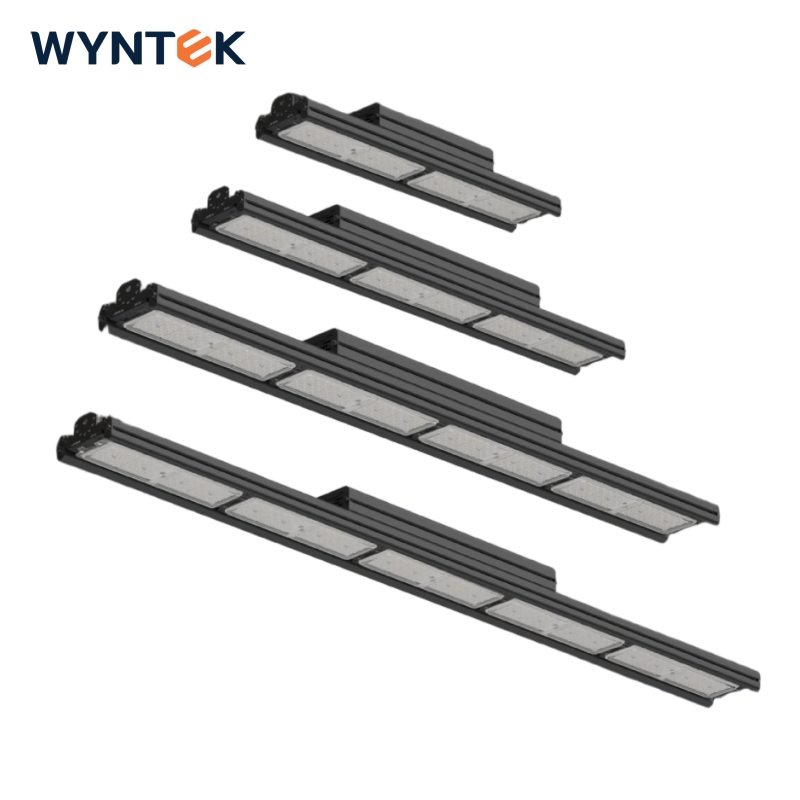

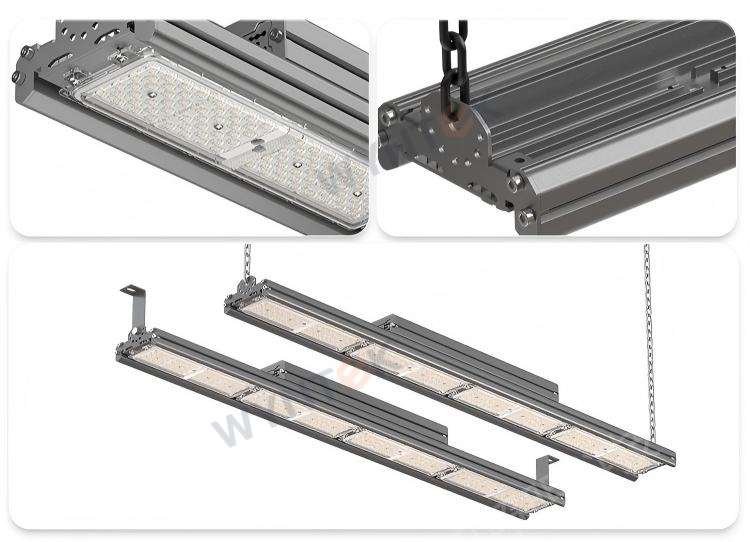

Actual Product Images
Production Photos
Applications

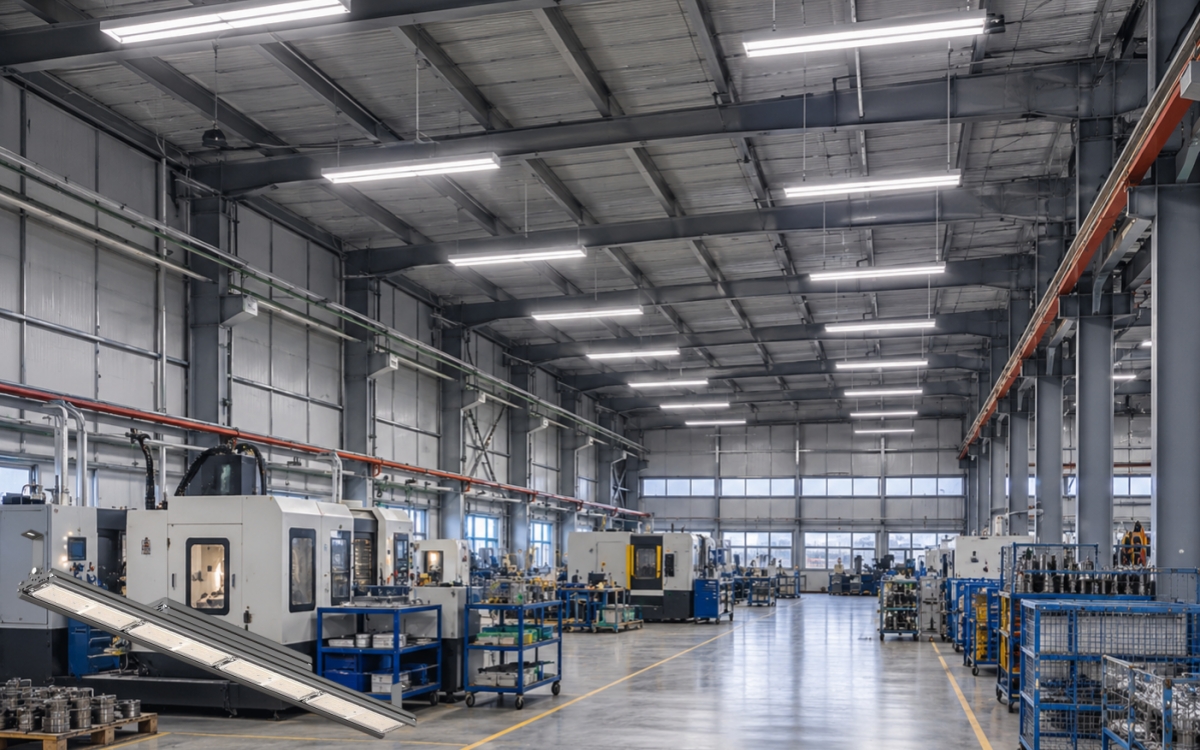

Workshop

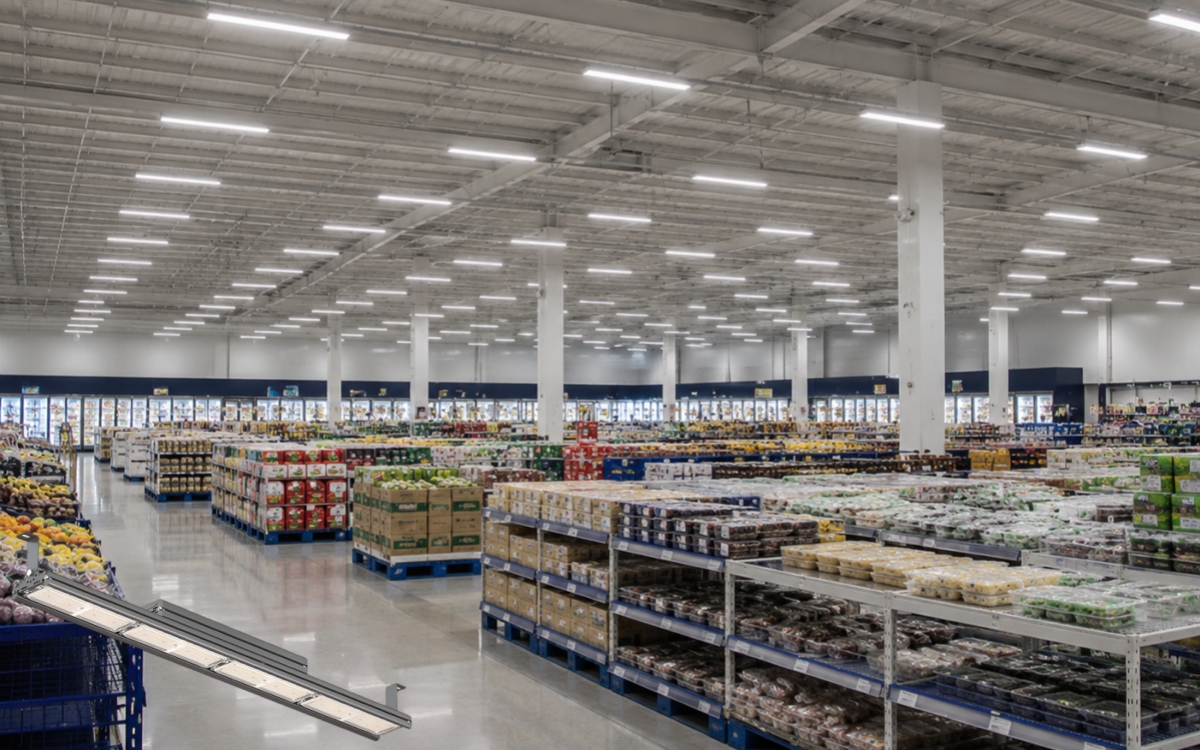

Supermarket

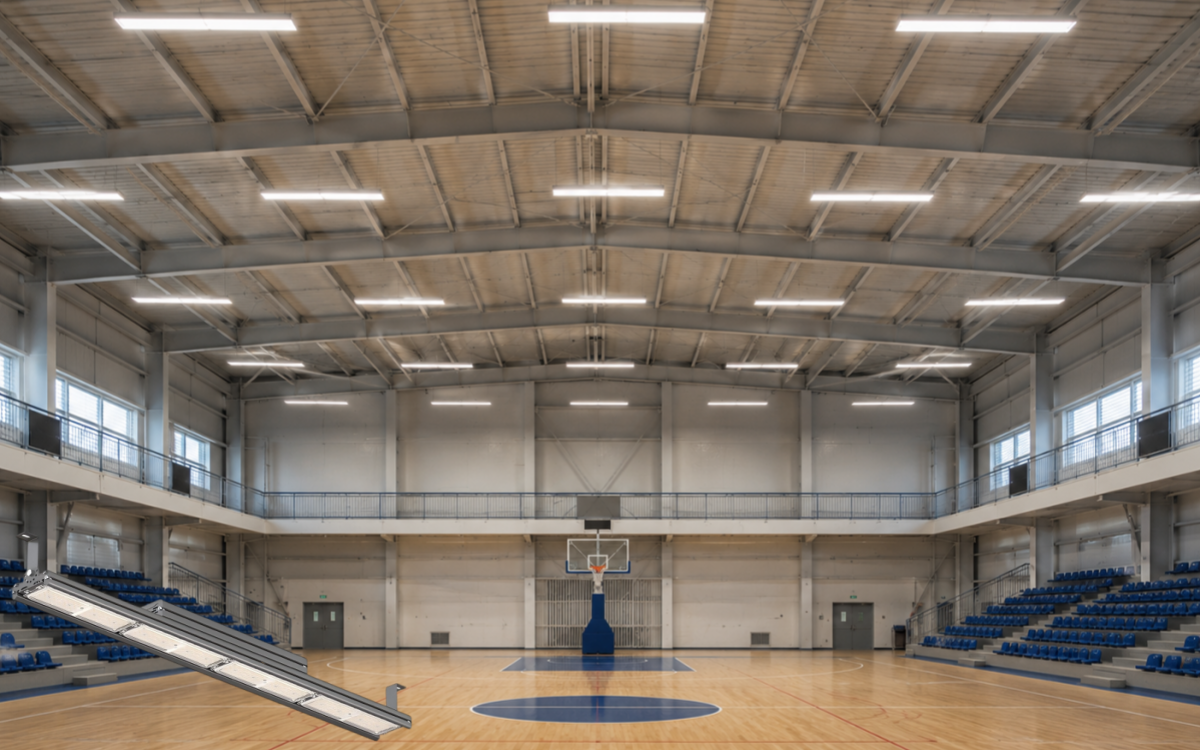

Basketball Court

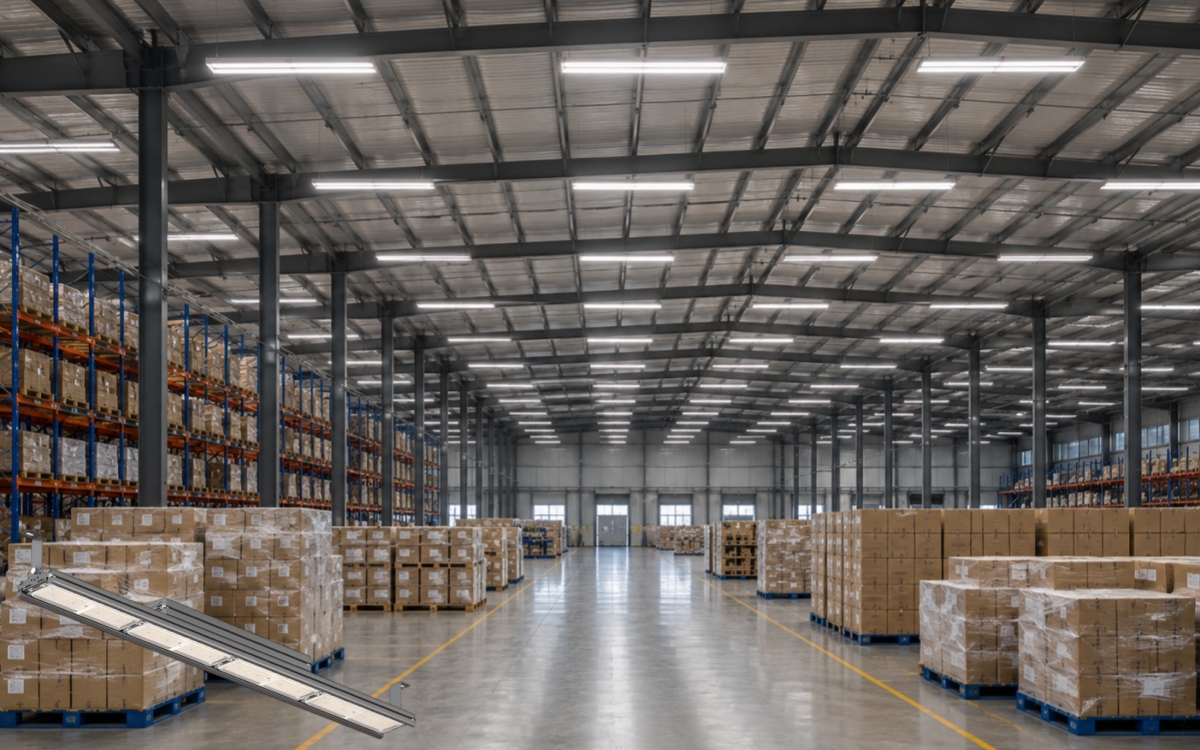

Warehouse
Product Description
The WYNTEK LED Linear High Bay Light is designed to deliver exceptional performance in large indoor commercial and industrial spaces. With a high luminous efficacy of up to 170lm/W, it provides bright, uniform illumination while significantly reducing energy consumption. Constructed with a durable aluminum housing and high-quality LED chips, the fixture offers excellent heat dissipation, long-term reliability, and a service life of over 50,000 hours. Available in wattages from 50W to 250W, this linear high bay light supports 0-10V dimming & motion sensor function optional. Its IP65 protection rating ensures dependable operation in demanding environments such as warehouses, logistics centers, manufacturing facilities, workshops, supermarkets, and indoor sports halls. With multiple beam angle options and premium driver brands available, it is an ideal lighting solution for projects requiring high efficiency, low maintenance, and consistent lighting performance.
Request a Free Quotation
Looking for a reliable LED Linear highbay solution?
✓ OEM & ODM Support
✓ Fast Response Within 24 Hours
✓ Worldwide Shipping
